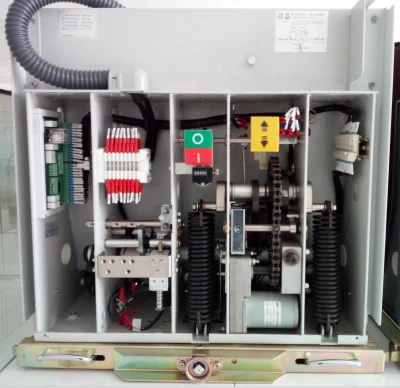

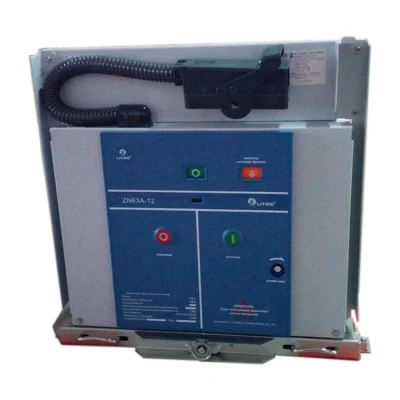

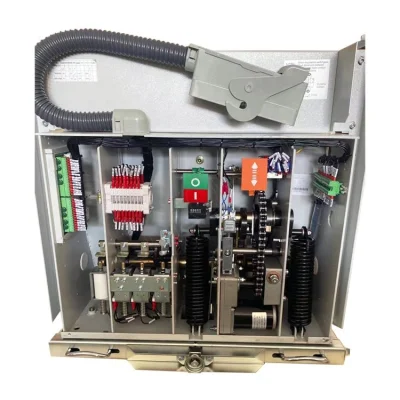

![630A 11kv 12kv Indoor Vs1 Vcb Vacuum Circuit Breaker Price for Electrical Panel Board 2023](http://img6.grofrom.com/www.chanelectricshop.com/226f3j00aVklMWqhnsoi/630A-11kv-12kv-Indoor-Vs1-Vcb-Vacuum-Circuit-Breaker-Price-for-Electrical-Panel-Board-2023.webp)
It is three- phase AC, 50 Hz indoor power distribution equipment with the voltage of 12KV. It can be used for protecting and controlling equipments in the fields of power supply and distribution system such as substation and industrial and mining industry etc.
VS1 series vacuum circuit breaker has taken into consideration of reliable interlock function which can be frequently operated at the rated current and with the capability of many times operations of breaking short-circuit current and fault current.
Product Standard
VS1 type vacuum circuit breaker conforms to national standard GB 1984-2003 HV Vacuum Circuit Breaker, JB3855 1996 3.6- 40.5KV indoor AC high voltage vacuum circuit breaker, DL/T403-2000 12kV 40.5kV HV vacuum circuit breaker ordering technical conditions.
IEC62271-100:2001 high voltagc AC circuit breaker relevant regulations.
Applying Ambient Conditions
1. Ambient temperature: -10ºC-+40ºC
2. Ambient humidity: the average humidity of a day should be no more than 95%; the average humidity of a month should be no more than 90%;
3. Earthquake intensity: not exceed 8 degrees
4. Saturated vapor pressure: average pressure of a day should be no more than2. 2kPa,the average pressure of a month should be no more than 1.8kPa;
5. The height above sea level: 1000m(not including special requirements)
6. It should be installed in the places without fire, explosion, serious filth, chemical corrosion and violent VS1 ration.
Technical datas
No. | Name | Unit | Data | ||||||
1 | Rated voltage | kV | 12 | ||||||
2 | Rated current | A | 630 | 1000 1250 | 1600 2000 2500 3150 | ||||
3 | Rated short circuit breaking current | kA | 20 | 25 | 20 | 25 | 31.5 | 31.5 | 40 |
4 | Rated peak withstand current | kA | 50 | 63 | 50 | 63 | 80 | 80 | 100 |
5 | Rated short time withstand current | kA | 20 | 25 | 20 | 25 | 31.5 | 31.5 | 40 |
6 | Rated short circuit making current | kA | 50 | 63 | 50 | 63 | 80 | 80 | 100 |
7 | Switching operations of short circuit current | times | 50 | ||||||
8 | Rated operating sequence | O-0.3s-CO-180s-CO-180s-CO(40KA) | |||||||
9 | Mechanical endurance | times | 10000 | ||||||
10 | Rated breaking operations of the rated current | times | 20000 | ||||||
11 | Rated lighting impulse withstand voltage(full wave) | kV | 75 | ||||||
12 | 1 min. rated power frequency withstand voltage | kV | 42 | ||||||
13 | Contact stroke | mm | 9±1 | ||||||
14 | Over-travel of contacts | mm | 3.5±0.5 | ||||||
15 | Closing speed | m/s | 0.4∼0.8 | ||||||
16 | Opening speed | m/s | 0.9∼1.2 | ||||||
17 | Contact bouncing duration at closing operation | ms | ≤2 | ||||||
18 | Simultaneity of three phase closing operation | ms | ≤2 | ||||||
19 | Closing time | ms | 30∼70 | ||||||
20 | Opening time | m/s | 20∼50 | ||||||
21 | Distance between phases | mm | 150, 210, 275 | ||||||
22 | D.C component | 50% |
Note:
1. No.11&12 are provided when needed.
2. Switchgear should be with cold wind when the rated current is 4000A.
