HVHIPOT New Arrival GD-610B Insulator Fault Detector

Discover the latest arrival from HVHIPOT, the GD-610B Insulator Fault Detector. As a factory, we offer high-quality products for all your insulator testing needs.
Request a Quote


Basic Info.

Model NO.
Computer Control
Power Source
Center Frequency
Discharge Mode
Pinpoint Arc Discharge
Discharge Interval
AC 10kV Distance 18m
Working Voltage
7.4V (lithium-ion batteries*2PCS)
Use Temperature
Whole dimension
Complete packing weight
Transport Package
Wooden Case
HV Hipot
Wuhan China
HS Code
Production Capacity

Product Description

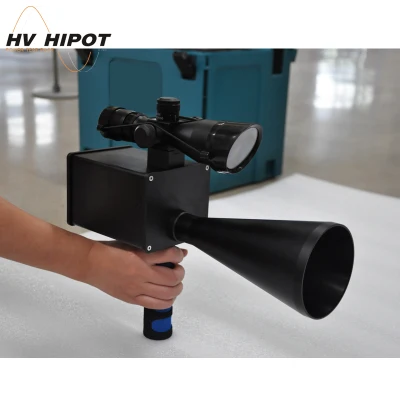

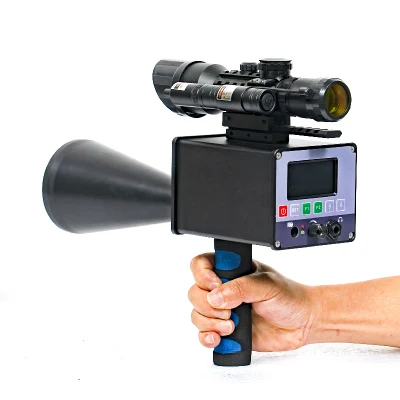

GD-610B Remote Insulator Flash Over Fault Detector

HVHIPOT New Arrival GD-610B Insulator Fault Detector
HVHIPOT New Arrival GD-610B Insulator Fault Detector

General Information

 In High Voltage Distribution Network, it usually cause the faults of flashover, grounding or porcelain explosion because of insulators degradation. So it is important to detect and eliminate the faults of insulators, to ensure safe running of transmission and distribution line.
The model GD-610B is used to detect faults of insulators and locate the faults in power station, substation without cutting power. It also can be used for PD detection, discharge detection, discharge detection of electric equipment.
Detection Items is as following:
1. Unknown flashover fault of live insulators (trip and switch on for many times)
2. Leak current to the ground of live insulators (responsible sensitivity is no less than 1mA)
3. Composite fault of insulators.
4. Oxidation discharge detection of HV connectors.
5. Bad switch contact discharge detection of HV equipment.
6. Discharge detection.
7. Pollution flashover detection.

Work Principle
When the insulator in the power transmission line of the power plant or substation has a flashover failure due to deterioration, a high-frequency ultrasonic wave will occur, which is not heard by the human ear. The wave collector of GD-610B will receive and enlarge the sound, inputs it into the host. After shaping, enlarging and processing the weak signal, the weak signal is converted to an audio signal by using unique microcomputer processing mode. So that the user can hear these sounds through the earphone and see the intensity indication of the sound on the LCD to judge the deterioration of the insulator. GD610B has strong directionality (laser locking the sound source, detecting the specific location of deteriorated insulators), provides technical support for condition-based maintenance, improves work efficiency, and achieves the ultimate goal of fault detection.


1. Small size, light weight, novel and beautiful structure, full function, simple and fast operation, safe and reliable.
2. For low or zero value insulators can automatically alarm. It is able to detect the insulator with leakage, but has not yet broken down at critical damage.
3. Long-distance detection, laser aiming, accurate positioning of the deteriorated insulator and the specific location of its equipment failure, the accuracy rate is 100%.
4. Dual indication of stereo headphone and LCD display, the effect is obvious.
5. Strong anti-interference ability.
6. High degree of intelligence:
Ø With data locking function.
Ø Under-voltage function(If low voltage, the instrument will shut off automatically).
Ø Constant current charging, auto stops by itself after full charge.
7. Lithium-ion battery with 1000 charging times, equipped with intelligent charging system to extend battery life.
8. Equipped with measurement plug-in for working environmental humidity, easy to understand the real working environment of the insulator.


Range: 6-500kV
Host Center frequency 40KHz±2Hz
Sensitivity Discharge mode: pinpoint arc discharge
Discharge interval: 4mm
AC 10kV         distance 18M
AC 35kV         distance 25M
AC 110kV        distance 50M
AC 220-500kV    distance 50M
Operating voltage 7.4V (lithium-ion batteries*2pcs)
Dimension 250*125*140mm
Aluminum alloy bracket
Laser Output wave length: 650nm
Divergency degree of light beam: 0.4mard
Output power:  50mw
Dimension: 16*0mm

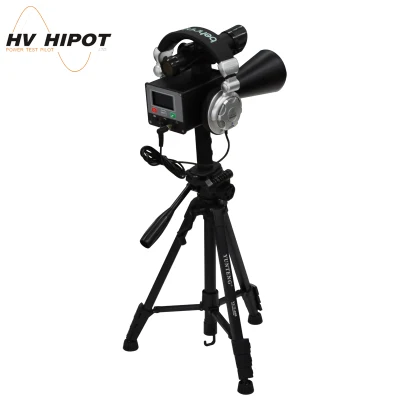

Telescopic sight/Detachable handle/Tripod standard mounting screw hole
High frequency sensor Center frequency (fo): 40kHz±2Hz
Center capacitance (Co): 2500±20%pF
Use temperature: -20-60ºC
Weight: 2.17kg
Rated impedance (Z) 125Ω
Frequency range 100Hz-10kHz
Sensitivity (1W/1m) 60dB
Charger Input voltage AC 220V±10%
Input frequency 50Hz±5%
Output DC voltage DC 8.4V
Current 5A
Packing dimension of whole set: 470*340*420mm
Working temperature: -30-60ºC; Humidity: (0~100)%RH
Complete packing weight: 7.18kg
