Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar

Get top-quality Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar at our factory. Improve your power efficiency today.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Low Voltage Shunt Capacitor
Usage
High Frequency Coupling, Tuning, Filter, High Frequency Bypass
Tuning
Polypropylene Capacitor
Filter
Polypropylene Capacitor
Rated Voltage
0.4kv-1.2kv
Rated Current
1-100A
Phase
Three Phase
Size
Customized
Temperature Range
-25° C~50° C
Altitude
Lower Than 2000m
Humidity
Less Than 85% Rh
MOQ
1 PCS
Frequency
15Hz~60Hz
Nominal Voltage
1000V and Below
Shell
The Printed Iron Shell
Delivery
7~15 Days After Payment Confirm
Transport Package
Standard Export Carton Package
Specification
Metallized Polypropylene Film Capacitor
Trademark
CSF, SaiFu
Origin
Tongling City, Anhui Province, China(Mainland)
HS Code
8532259000
Production Capacity
3500000PCS/Month

Product Description

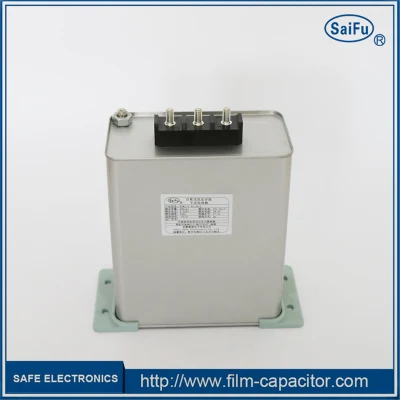

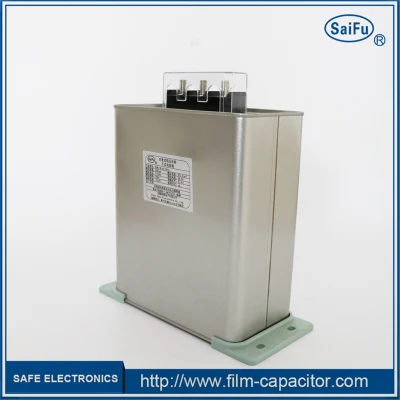

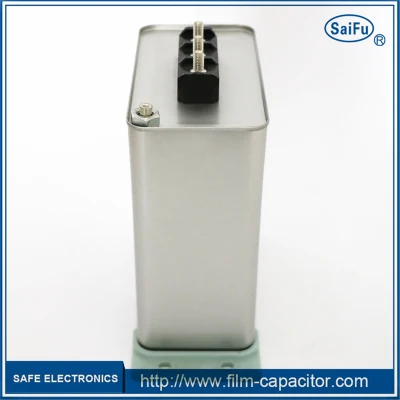

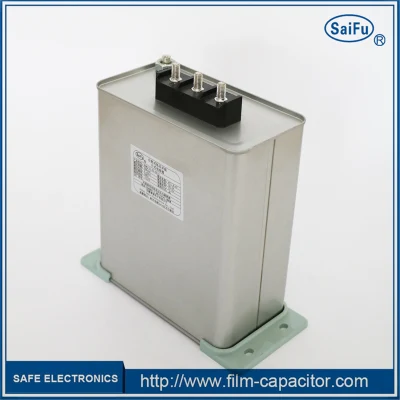

Low Voltage Self-healing Shunt Capacitor Three-phase Reactive Power Compensation Device 30Kvar

Low voltage shunt capacitor is designed with special technology to provide inductive reactive
power for the system and absorb capacitive reactive power of the system.

1.Production Process Flow Chart

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar
2. Features

(1)Small size, large current, adapt to higher ambient temperature degree, lower temperature
rise, less heat.
(2)Excellent self-healing performance, bulit -in-self discharge resistance and safety explosion
-proof device makes the product more safe and more reliable.
(3)Adopt dry structure, or use microcrystalline wax as an impregnant agent, running performance
is more steady, no oil leakage, safety and environmental protection.
(4)The printed iron shell with special anti-corrosion treatment, corrosion resistance, attractive and
firm, no need to spray paint, more environmentally friendly.

3. Applications

Widely applied to the power factor capacitors of AC power system with nominal voltage of
1000V and below, frequency of 15Hz~60Hz, mainly used to improve the power factor, reduce
reactive power loss and improve voltage quality.

4. Technical Specification

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar



Model BSMJ
Rated Volatge
Rated Capacity
Size L×W×H


Model BSMJ
Rated Volatge
Rated Capacity
Size L×W×H
kv kvar mm kv kvar mm
0.4-5-3 0.4 5 167×57×110 0.45-16-3 0.45 16 167×57×180
0.4-7.5-3 0.4 7.5 167×57×130 0.45-18-3 0.45 18 167×57×210
0.4-10-3 0.4 10 167×57×150 0.45-20-3 0.45 20 167×57×210
0.4-12-3 0.4 12 167×57×180 0.45-25-3 0.45 25 167×95×210
0.4-14-3 0.4 14 167×57×210 0.45-30-3 0.45 30 167×95×210
0.4-15-3 0.4 15 167×57×210 0.525-5-3 0.525 5 167×57×130
0.4-16-3 0.4 16 167×57×210 0.525-7.5-3 0.525 7.5 167×57×150
0.4-18-3 0.4 18 167×85×190 0.525-10-3 0.525 10 167×57×180
0.4-20-3 0.4 30 167×85×190 0.525-12-3 0.525 12 167×57×210
0.4-25-3 0.4 25 167×85×210 0.525-14-3 0.525 14 167×57×240
0.4-30-3 0.4 30 167×85×250 0.525-15-3 0.525 15 167×57×240
0.45-5-3 0.45 5 167×57×110 0.525-16-3 0.525 16 167×85×210
0.45-7.5-3 0.45 7.5 167×57×110 0.525-18-3 0.525 18 167×85×210
0.45-10-3 0.45 10 167×57×130 0.525-20-3 0.525 20 167×85×210
0.45-12-3 0.45 12 167×57×150 0.525-25-3 0.525 25 167×85×245
0.45-14-3 0.45 14 167×57×150 0.525-30-3 0.525 30 167×85×300
0.45-15-3 0.45 15 167×57×180

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar



Model BSMJ
Rated Volatge
Rated Capacity
Size L×W×H


Model BSMJ
Rated Volatge
Rated Capacity
Size L×W×H
kv kvar mm kv kvar mm
0.4-5-3 0.4 5 Φ76×245 0.45-16-3 0.45 16 Φ86×245
0.4-7.5-3 0.4 7.5 Φ76×245 0.45-18-3 0.45 18 Φ86×290
0.4-10-3 0.4 10 Φ76×245 0.45-20-3 0.45 20 Φ86×290
0.4-12-3 0.4 12 Φ76×245 0.45-25-3 0.45 25 Φ116×290
0.4-14-3 0.4 14 Φ86×245 0.45-30-3 0.45 30 Φ116×290
0.4-15-3 0.4 15 Φ86×245 0.525-5-3 0.525 5 Φ76×245
0.4-16-3 0.4 16 Φ86×245 0.525-7.5-3 0.525 7.5 Φ76×245
0.4-18-3 0.4 18 Φ86×290 0.525-10-3 0.525 10 Φ76×245
0.4-20-3 0.4 30 Φ86×290 0.525-12-3 0.525 12 Φ76×245
0.4-25-3 0.4 25 Φ116×290 0.525-14-3 0.525 14 Φ86×245
0.4-30-3 0.4 30 Φ116×290 0.525-15-3 0.525 15 Φ86×245
0.45-5-3 0.45 5 Φ76×245 0.525-16-3 0.525 16 Φ86×290
0.45-7.5-3 0.45 7.5 Φ76×245 0.525-18-3 0.525 18 Φ86×290
0.45-10-3 0.45 10 Φ76×245 0.525-20-3 0.525 20 Φ86×290
0.45-12-3 0.45 12 Φ76×245 0.525-25-3 0.525 25 Φ116×290
0.45-14-3 0.45 14 Φ86×245 0.525-30-3 0.525 30 Φ116×290
0.45-15-3 0.45 15 Φ86×245

5. Production Equipments

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar
6. Product Certifications

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar
7. R & D Patents

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar
8. Honors Our Company Has Received

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar
9. Geographical Advantage

Low Voltage Self-Healing Shunt Capacitor Three-Phase Reactive Power Compensation Device 30kvar
10. FAQ

Q1. Are you a manufacturer?
Yes, we are professional capacitor manufacturer and have specialized in this industry for decades.

Q2. What is the specification of DC-Link capacitor?
Capacity: 5kvar-100kvar   Voltage: 0.4kv-1.2kv

Q3. How do you ensure your quality?
Our products have obtained CQC, TUV, UL, CE and other relevant certifications, in compliance with
RoHS and REACH directive requirements.

Q4. Can you provide samples?
Yes, we can provide samples for testing.

Q5. Can your product be customized?
Yes, we can customize products according to customer's requirement.

        Quality first, Customer foremost, Build tomorrow's business with today's service!
