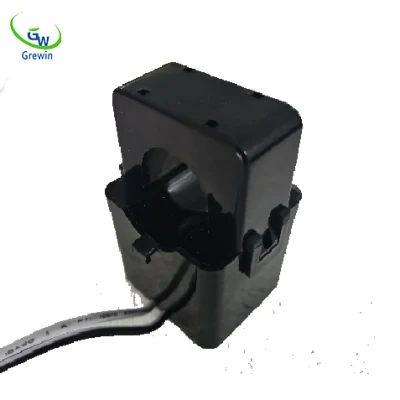

400A/6A 500mA 0.333V Outdoor Split Core Current Transformer

Get reliable 400A/6A 500mA 0.333V Outdoor Split Core Current Transformer from the factory. Perfect for outdoor use. Order now for reliable performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
GWSCCT681B
Operation Condition
Indoor
Usage
Protection, Measurement, Relay Prodtion HVAC
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Common Insulating Materials
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Electromagnetic Type
Accuracy Class: 0.5 1.0s
Ratio : 3000:1
Protection
5 Times Protection, 10 Times Protecti
Split Core Current Transformer
0.333-3.53V Rated Secondary Output
Application 1
Current, Power, Energy, Monitoring Devices
Application 2
Power Factor Correction Devices.
Rated Load
1, 2.5, 5.0, 10, 30va
Highest Voltage for Equipment Um (RMS)
720 VAC
Frequency Range
50/60Hz
Rated Power-Frequency Withstand Voltage;
3, 000 VAC
Output Split Core CT
Standard:IEC 60044-1
Name
Current Probe
Product1
Split CT Transformer
Product2
ETL Current Probe Transformer
Product 3
600A 100A 5A Split Core CT
Transport Package
Export Standard Carton
Specification
ETL, CE CB, ROHS, ISO9001 approval
Trademark
Grewin
Origin
China
HS Code
85045000
Production Capacity
50000PCS Per Month

Product Description

0.5-600A 0.333V Transformer Split with ETL
400A/6A 500mA 0.333V Outdoor Split Core Current Transformer
TIANJIN GREWIN TECHNOLOGY CO.,LTD.
GWSCCTA series split core current transformer
Part number Rated input(A) Second output(V) Accuracy class Limit primary current(A) Accuracy class Frequency(Hz) OutlineDimensions ID-L-W-H(mm) Unit weight Turn ratio Output cable
GWSCCT681B-005 5  10  15 0.333 1.0 3.0 - - 50-400 5.0-25.0-22.5-34.5 30g 3000:1 wire(1m)
GWSCCT681B-010 5,10,20,50,75 0.333 1.0 3.0 120 5P 10P 50-400 10-29.4-26.4-41.7 50g 3000:1 wire(1m)
GWSCCT681B-016 75,100,150 0.333 0.5 1.0 300 5P 10P 50-400 16-36.9-39.2-52.9 100g 3000:1 wire(1m)
GWSCCT681B-024 100,150,200,250 0.333 0.5 1.0 540 5P 10P 50-400 24-51.2-47-70.2 250g 3000:1 wire(1m)
GWSCCT681B-035 200,300,400,600 0.333 0.5 1.0 600 5P 10P 50-400 35-65.8-51.2-83.5 400g 3000:1 wire(1m)

400A/6A 500mA 0.333V Outdoor Split Core Current Transformer
Mfg Rated Input Output Accuracy Dimensions(mm/inch)
P/N (A) (mA/V)
  Ø A B C


SCCT681B-010 5-75A 0-50mA 0.5,1.0,3.0 10.0 41.5 30.0 26.5
(5,10,20,50,75) 0.333V (0.39) (1.63) (1.18) (1.04)


SCCT681B-016 5-150A 0-100mA 0.5,1.0,3.0 16.0 53.0 36.0 30.5
(5,10,50,100,150) 0.333V (0.63) (2.09) (1.42) (1.20)


SCCT681B-024 10-400A 0-200mA 0.5,1.0,3.0 24.0 70.0 51.5 39.0
(10,50,100,200,400) 0.333V (0.95) (2.76) (2.03) (1.50)


SCCT681B-035 10-630A 0-500mA 0.5,1.0,3.0 35.0 84.0 65.0 41.0
(20,100,250,400,600) 0.333V (1.38) (3.31) (2.56) (1.61)


GWSCCT681B Series Split Core Current Sensor (Specifications)

Rated Primary current

5-600A

Rated Secondary current

0.333V-3.53V

Rated load

1, 2.5, 5.0, 10, 30VA

Accuracy

0.5, 1.0, 3.0 Class

Rated Short-time thermal current (Ith)

20In

Rated Dynamic current (Idyn)

2.5Ith

Case Material

 UL flame retardant rating 94-V0

Highest Voltage for Equipment Um (rms)

720 Vac

Rated Power-Frequency Withstand Voltage(rms)

3,000 Vac

Frequency Range:

50/60Hz

Operating Temperature

 -15ºC to 50ºC

Standard

IEC 60044-1

Accessories

Supplied with feet for base mounting if required

Certification

RoHS compliant CE&ETL approved

GWSCCT-ASeries Split Core Current Sensor  (Features)

Low cost

5 standard sizes

Split core design, safer, easier installation, and portable

GWSCCT Series Split Core Current Sensor  (Applications)

Measures AC current flow to electric motors, lighting, air condition equipment, etc.

Compatible with HV AC temperature control, power management, building

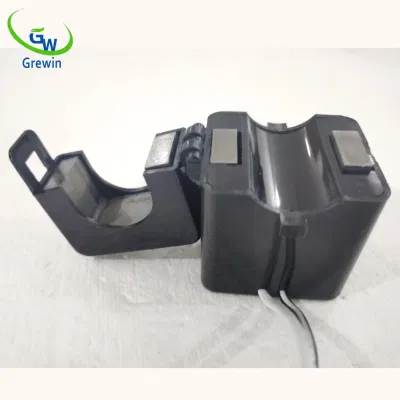

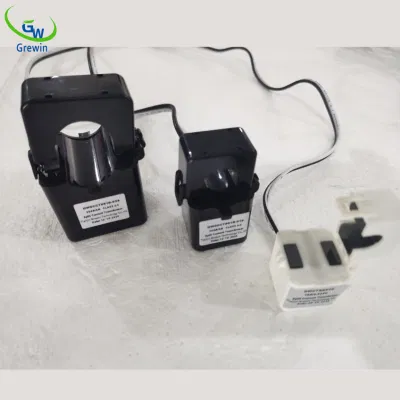

The GREWIN SCCT series of split core ct style current sensors are designed for fast and easy installation.The split core design permits non-contactcurrent measurements through magnetic field induction without disconnecting cables or busbar circuits for CT installation. This method permits a safer, easier and portable current measurement.
0.333-3.53V rated secondary output split core current transformer :

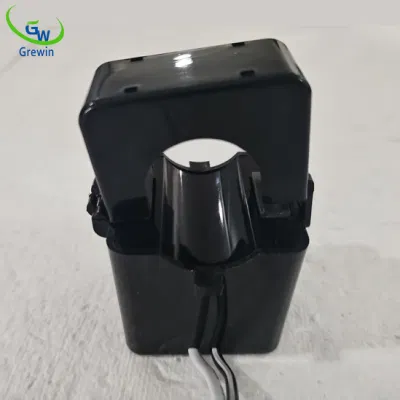

400A/6A 500mA 0.333V Outdoor Split Core Current Transformer

Model No 1 :GWSCCT681B -010
Ratio : 3000:1
Rated input: 5A 10A 20A 50A 75A
Accuracy class: 1.0s  3.0s
Rated primary current :120A
Protection: 5 times protection ,10 times protection like 25A 50A 100A 200A 250A 385A 500A 750A

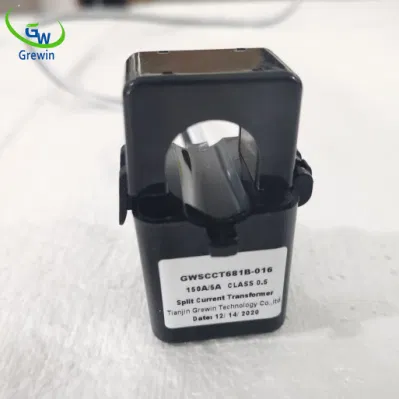

Model No.2 :GWSCC681B-016
Ratio :3000:1
Rated input: 75A 100A 150A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 300A
Protection : 5 times Protection, 10 times protection


Model No. 3:GWSCC681B-024
Ratio : 3000:1
Rated input: 100A 150A 200A 250A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 540A
Protection : 5 times Protection, 10 times protection

Model No.4:GWSCC681B-035
Rated input: 200A 300A 400A 600A
 Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 600A
Protection : 5 times Protection, 10 times protection
Frequency: 50--400Hz
400A/6A 500mA 0.333V Outdoor Split Core Current Transformer






  Mfg Rated Input           Dimensions(mm)
    Output (A) Accuracy
  P/N (A)   ø   A B   C



  SCCT667D-025 50-400A   1A/5A 0.5,1.0,3.0 25   173 105   56

  SCCT667D-032 100-630A   1A/5A 0.5,1.0,3.0 32   206 112   56

  SCCT667D-045 100-1000A   1A/5A 0.2,0.5,1.0 45   193 125   56

  SCCT667D-055 100-1200A   1A/5A 0.2,0.5,1.0 55   180 135   56

  SCCT667D-065 100-1500A   1A/5A 0.2,0.5,1.0 65   203 145   56

  SCCT667D-080 200-2000A   1A/5A 0.2,0.5,1.0 80   228 160   56

  SCCT667D-100   500-3000A   1A/5A 0.2,0.5,1.0   100   248 180   56






400A/6A 500mA 0.333V Outdoor Split Core Current Transformer




400A/6A 500mA 0.333V Outdoor Split Core Current Transformer
  1. Type Selection(Output: 1A/5A)
Mfg P/N Rated Input (A) Output (A)
Accuracy
Dimensions(mm)
A B C D E F G H I

SCCT731A(23)

100-400A

1A/5A
0.5,1.0,3.0
20

30

50

88

104

34

41

40

31

SCCT731B(58)

250-1000A

1A/5A
0.5,1.0,3.0
50

80

78

114

145

32

32

33

33

SCCT731C(88)

250-1000A

1A/5A
0.5,1.0,3.0
80

80

108

144

145

32

32

33

33

SCCT731D(812)

500-1500A

1A/5A
0.5,1.0,3.0
80

120

108

144

185

32

32

33

33

SCCT731E(814)

600-5000A

1A/5A
0.5,1.0,3.0
80

140

122

176

228

47

47

53

38

SCCT731F(816)

800-5000A

1A/5A
0.5,1.0,3.0
80

160

120

176

246

48

48

53

38

SCCT731G(36)

100-3000A

1A/5A
0.5,1.0,3.0
30

60

88

132

131

49

36

55

43

SCCT731H(513)

100-4000A

1A/5A
0.5,1.0,3.0
55

130

80

125

195

35

30

53

35




400A/6A 500mA 0.333V Outdoor Split Core Current Transformer
400A/6A 500mA 0.333V Outdoor Split Core Current Transformer

100A 600A 0.333V Split CT transformer Current Instrument transformer Clamp Probe Transformer for Electrical Motor and HVAC with ETL AND IEC APPROVALS

400A/6A 500mA 0.333V Outdoor Split Core Current Transformer



400A/6A 500mA 0.333V Outdoor Split Core Current Transformer
400A/6A 500mA 0.333V Outdoor Split Core Current Transformer
