Basic Info.
Model NO.
ABS203
Poles Number
3
Type
Circuit Breaker
Function
Circuit-Breaker Failure Protection, Overcurrent Protection
Certification
ISO9001-2000, CE, CCC
Warranty
2 Years
Transport Package
Carton Box or as Your Request
Specification
IEC60947-2 CE
Trademark
KRIPAL
Origin
China
HS Code
85362000
Production Capacity
10000 PCS / Month
Product Description

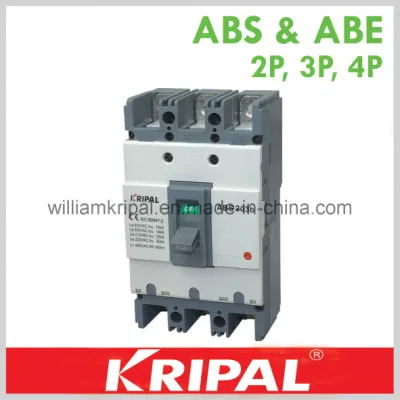

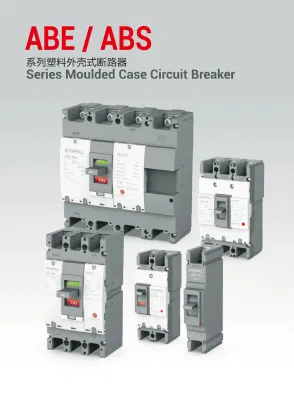

Motor protection circuit breaker ABS/ABE series motor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated work
ABS/ABE seriesmotor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.
Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.
It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.
The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
| Type | 2pole | AB-32E | AB-52E | AB-52S | AB-62E | AB-62S | AB-102E | AB-102S | AB-203E | AB-203S | AB-403E | AB-403S |
| 3pole | AB-33S | AB-53E | AB-53S | AB-63E | AB-63S | AB-103E | AB-103S | |||||
| Frame size(AF) | 30 | 50 | 60 | 100 | 225 | 400 | ||||||
| Rated operational voltage(V)Ue (50/60Hz) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |
| Rated insulation voltage(V)Ui(50/60Hz) | 690 | 690 | 690 | 900 | 900 | 690 | 690 | 690 | 690 | 690 | 690 | |
| Rated impulse withstand voltage(KV)Uimp | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Uitimate breaking capacity (KA,Icu AC 50/60Hz) | 220V/240V | 10 | 10 | 25 | 10 | 25 | 10 | 50 | 35 | 50 | 35 | 50 |
| 380V | 7.5/5 | 7.5/5 | 14/10 | 7.5/5 | 14/10 | 7.5/5 | 25 | 18 | 25 | 30 | 42 | |
| 415V | 7.5/5 | 7.5/5 | 14/10 | 7.5/5 | 14/10 | 7.5/5 | 25 | 18 | 25 | 25 | 35 | |
| 440/460V | 5 | 5 | 10 | 5 | 10 | 5 | 25 | 18 | 25 | 25 | 35 | |
| 480/500V | 2.5 | 2.5 | 7.5 | 2.5 | 7.5 | 2.5 | 25 | 10 | 14 | 18 | 25 | |
| 600V | 2.5 | 2.5 | 5 | 2.5 | 5 | 2.5 | 14 | 7.5 | 10 | 18 | 22 | |
| Utilisation category | A | A | A | A | A | A | A | A | A | A | A | |
| Endurance | Mechanical | 8500 | 8500 | 8500 | 8500 | 8500 | 8500 | 8500 | 7000 | 7000 | 4000 | 400 |
| Electrical | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 | |
