Basic Info.
Model NO.
APDM-630A
Standard
IEC
Rated Voltage
1kv
Transport Package
Carton
Specification
39X34X40CM
Trademark
SMICO
Origin
China
HS Code
8536500090
Production Capacity
50000/Month
Product Description

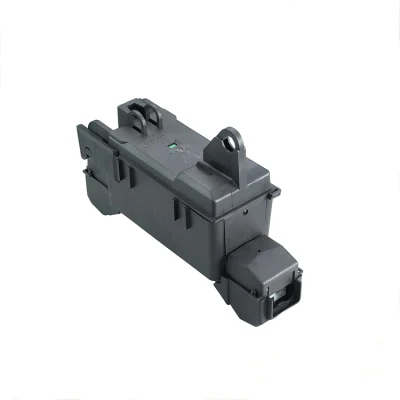

APDM 400-Single phase switch for NH type fuses up to 400A
General Description
The LV fuse-switch disconnector APDM 400 is capable of up to 400A fuse NH size 1 and 2 . It is ideal for all secondary distribution protections. It could be connected with cable lug(not included) or by connectors.Configurable for unipolar operation, bipolar ,tripolar etc. With devices for signaling and indiacation of operation and safety accessories to improve the operation of the equipment .
| Technical Data | |
| Item No | APDM-630 |
| Voltage | 500 V |
| Insulation Level | 1000 V |
| Freqency | 50/60 HZ |
| Operacional current with fuses | 630A |
| with blades | 800A |
| Installation Category | AC 22B |
| Short time current (1s) | 12KA |
| Dinamic current (crest) | 50KA |
| Interruption capacity | 100KA |
| Weigth | 1.8KG |
| Protection degree | IP24 |

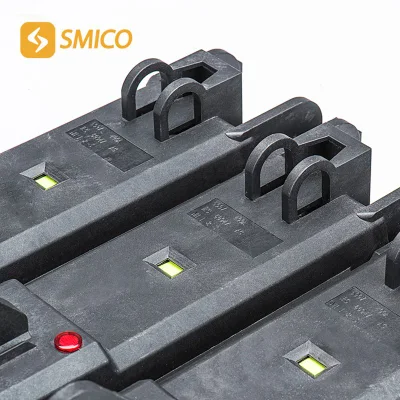

The switch fuse 400 APDM has the following features included :
Link protector
Operation Light the fuse
Installed of installed fuse
viewer characteristics of the fuse installed
Sealable safety inserts for siblings of bipolar-shaped section ,pole ,pole,ect.,
eyelets suitable for proper and safe opening and closing operation ,assembly and isassembly of the cover
eyelets suitable for proper and safe opening and closing operation ,assembly and isassembly of the cover
