Household Capacitor Switching Modular AC Contactor Knc8

Looking for Household Capacitor Switching Modular AC Contactor Knc8? Look no further! We are a factory specializing in the production of premium electrical products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KNC8
Transport Package
Carton
Specification
9A~400A
Trademark
korlen
Origin
Wenzhou; Zhejiang; China
HS Code
8536900000
Production Capacity
5000PCS/Day

Product Description

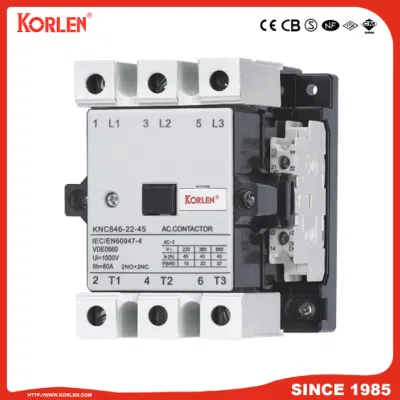

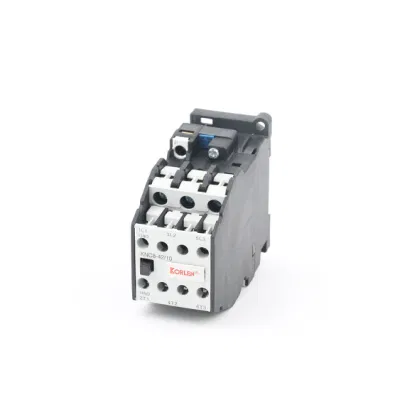

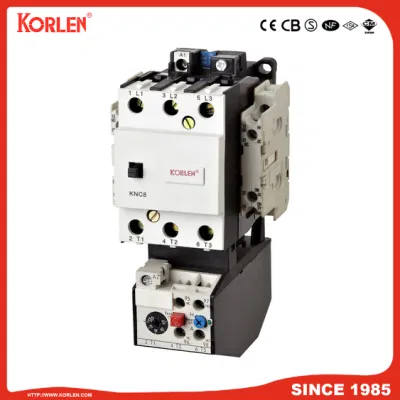

Household AC Contactor and Modular AC Contactor

The series KNC8 AC contactor is suitable for 50/60Hz, rated insulation voltage is 690-1000V, Rated current is 9A-400A at rated operational voltage 380V under the utilization category AC-3. It mainly used for making or breaking circuit at a long distance, suitable for controlling starting\stopping\reversing of AC motor. According with IEC60947 VED0660 GB14048 standards.

1. Good safety, induction parts are inside.
2. Small volume, light weight, material of air chute not easily to break and good arc capability.
3. Air chamber is sealing type, distance of arcover is small, can reduce the measurement Of electric box body.
4. Unique system frame of main contact group, contact abrasion reduce, increase the electro-life.
5. Electromagnet works reliably, abrasion is more less, low noise, having high mechanical Intensity.
6. Frequency operation and controlling capacity are all very high.
7. It's convenient for connection, fastness, high touch reliability, strong vibration resistance, Good safety precaution.
Type KNC8-40

KNC8-41 KNC8-44 KNC8-46 KNC8-47 KNC8-48 KNC8-49 KNC8-50 KNC8-52 KNC8-54 KNC8-56
Rated insulation voltage(V) 690 690 690 1000 1000 1000 1000 1000 1000 1000 1000
Rated operational
current(380V
AC-3 9 12 32 45 63 75 85 110 170 250 400
AC-4 3.3 3.3 15.5 24 28 34 42 54 75 110 150
Rated outputs
of three-phase
motors at 50Hz
AC-3
AC-4

230/220V 2.4 2.4 8.5 15 18.5 22 26 37 55 78 125
400/380V 4 4 15 22 30 37 45 55 90 132 200
500V 5.5 5.5 21 30 41 50 59 76 118 178 284
690/660V 5.5 5.5 23 39 55 67 67 100 159 235 375
1000V - - - - - 39 39 65 90 132 250
400/380V 1.48/1.4

1.48/1.4

7.5

12.6/12

14.7/14

17.9/17

22/21

28.4/27

40/38

61/58

85/81

690/660 2.54/2.4

2.54/2.4

13

21.8/20.8

25.4/24.3

30.9/29.5

38/36

49/46.9

69/66

105/100

147/140

Mechanical endurance(×10 6 )                                    (0.8-1.1)Us
Electrical
endurance(×10 6 )
AC-3 10 10 10 10 10 10 10 10 10 10 10
AC-4 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Switching frequency AC-3 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
AC-4 1000 1000 750 1200 1000 1000 850 100 700 700 500
Coil voltage tolerance 250 250 250 400 300 300 250 300 200 200 150
Power
consumption
of coil(50Hz
Closed(VA)

10 10 12.1 17 17 32 32 39 58 84 115
p.f.

0.29 0.29 0.28 0.29 0.29 0.23 0.23 0.24 0.26 0.24 0.33
Colsing(VA)

6.8 6.8 101 183 183 330 330 550 910 1430 2450
p.f. 0.82 0.82 0.83 0.6 0.6 0.5 0.5 0.45 0.38 0.34 0.21
Conventional thermal current 20 20 55 80 90 100 100 140 210 300 400
Conventional thermal current of auxiliary contacts

10 10 10 10 10 10 10 10 10 10 10
Rated operational current
of auxiliary contacts
AC-15
380/220V
6/10 6/10 4/6

4/6

4/6

4/6

4/6

4/6

4/6

4/6

4/6
