Basic Info.
Model NO.
CJX9
Product Name
Timer Contactor
Certificate
UL/CE/CCC
Warranty
2 Years
Duty Cycle
Continuous
Emperature Range
-40°f to 150°f
Mechanical Life(No Load)
Conforms to UL and Ari Specifications
Weight(Approximate)
9.25 Oz
Coils Frequency
50/60Hz
Mechanical Life
1,000, 000 Times
Electrical Life
250, 000 Times
Transport Package
Carton
Trademark
KAYA:
Origin
China
HS Code
1904031931
Production Capacity
100000/Month
Product Description

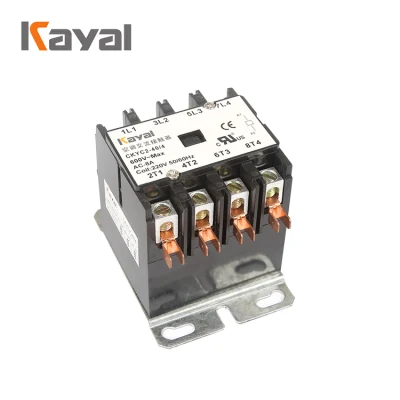

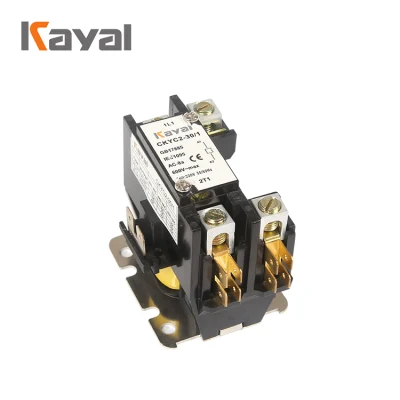

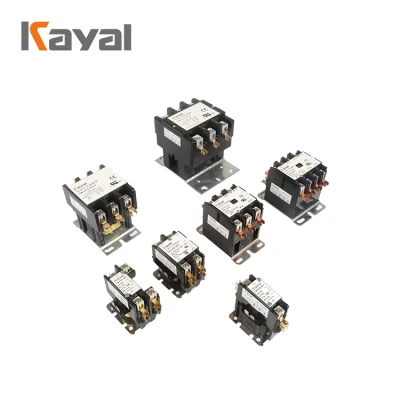

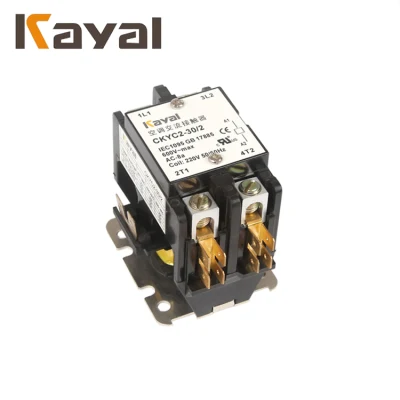

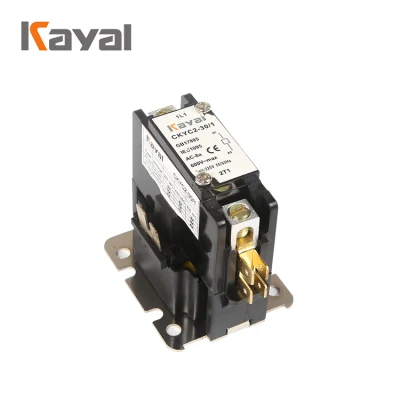

1-4 POLE CONTACTORS (20A THRU 90A)
Designed for Air Conditioning and Heating Equipment
FEATURES
1. Low VA coil for cooler operation and increased life
2. Quiet operation
3. Universal style mounting bracket existing mounting holes
4. Double brake contacts ensure positive make and break
5. Screw terminal or pressure connectors and double 1/4 quick connects
6. Provided on all models for easy installation
Specification
| Insulating material | Contact block and carrier are highly electrical-grade thermosetting resin | ||||||
| Temperature range | -40°F to 150°F | ||||||
| Mechanical life | Conforms to UL and ARI specifications | ||||||
| Electrical life | Conforms to UL and ARI specifications 94-388 thru 94-390 achieve 200, 000 Cycles, make LRA at. 5PF, break 125% of FLA at. 75PF at Rated voltage, 10, 000 cycles make and brek LRA at. 5PF rated voltage 94-394 thru 94-369 achieve 100, 000 cycles, make LAR at 5PF at rated Voltage 6.000 cycles make and break LEA at 5PF rated voltage | ||||||
| Outline drawings | As follow | ||||||
| Weight(approximate) | 9.5oz | ||||||
| Coils frenquency | 50/60Hz | ||||||
| Coils insulation | Class B(130'C) | ||||||
| Termination | Pressure connector and double 1/4 Q. C. | ||||||
| Operate | 85% of nominal coil voltage, 110% maximum sate operate | ||||||
| Duty cycle | Continuous | ||||||
| Coil data | 2P | ||||||
| Steveco nmuber | Volatge | Ress DC | Current | Nominal | Max. Inrush | ||
| 30 AMP 40AMP | AC | OHMS | MA | VA | VA | ||
| C2-244 C2-247 | 24 | 11 | 250 | 6 | 32 | ||
| C2-389 C2-395 | 120 | 224 | 50 | 6 | 32 | ||
| C2-390 C2-396 | 208/240 | 997 | 25 | 6 | 32 | ||
| Contact Ratings | |||||||
| Type | Voltage | FLA | LRA | RES | |||
| C2-244 thru C2-246 | 277 | 30 | 150 | 40 | |||
| 480 | 30 | 75 | 40 | ||||
| 600 | 30 | 50 | 40 | ||||
| C2-3247 thru C2-252 | 277 | 40 | 200 | 50 | |||
| 480 | 40 | 100 | 50 | ||||
| 600 | 40 | 80 | 50 | ||||
