Basic Info.
Model NO.
Singleside Formwork
Connection Form
Welded Connection
Pouring Height
Max 7.5 Meters
Basic Supporting Bracket
4.5/ 5.5 Meters
Permitted Concrete Pressure
Max 50 Kn/Square Meter
Transport Package
Standard Package
Specification
Customized
Trademark
LIANGGONG
Origin
China
Product Description
Product Description
Single-side Bracket

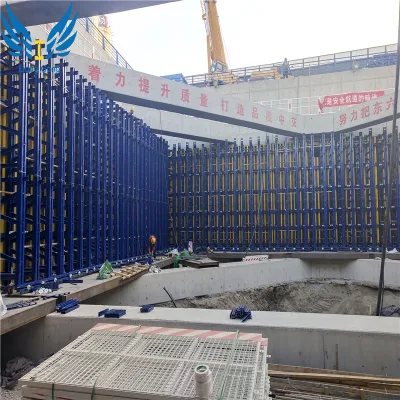

Single-sided bracket is a formwork system for concrete casting of single-sided wall, characterized by its universal components, easy construction and simple and quick operation. Since there is no wall-through tie rod, the wall body after casting is completely water-proof. It has been widely applied to the outer wall of basement, sewage treatment plant, subway and road& bridge side slope protection.
Due to the area limitation of construction sites and the development of slope protection technology, the application of single-sided bracket for basement walls is becoming more and more common. As the lateral pressure of concrete cannot be controlled without wall-through tie rods, it has caused too much inconvenience to formwork operation. Many engineering projects have adopted a variety of methods, but formwork deformation or breaking occurs now and then. The single-sided bracket manufactured by our company is specially designed to serve the need on site, and it solves the problem of formwork reinforcement. The design of the single-sided formwork is reasonable, and it has the advantages of convenient construction, simple operation, fast speed, reasonable load bearing and labor saving, etc. Maximum cast height at one time is 7.5m , and it includes such important parts as single-sided bracket, formwork and anchor system.
Two types of single-side bracket

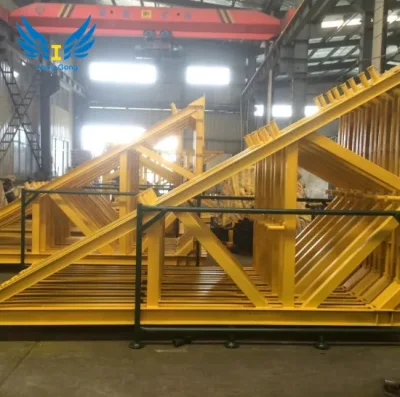

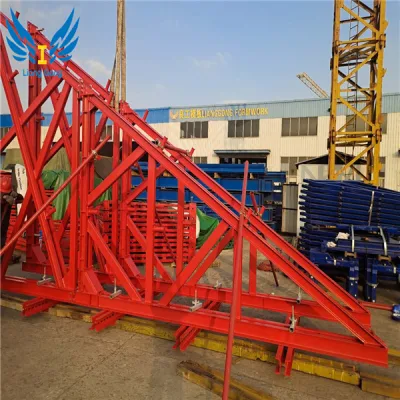

1.Structure diagram of truss type
Composite-type single-sided bracket is to be formed by standard frame and heighten frames as per project need for different heights, being up to 7.5m in one time casting.

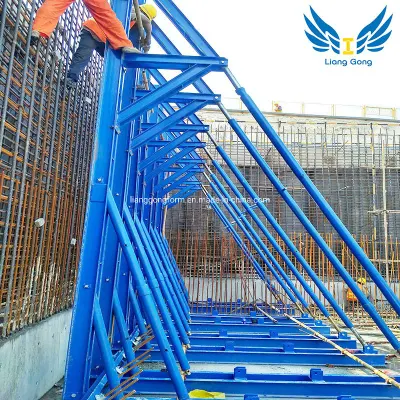

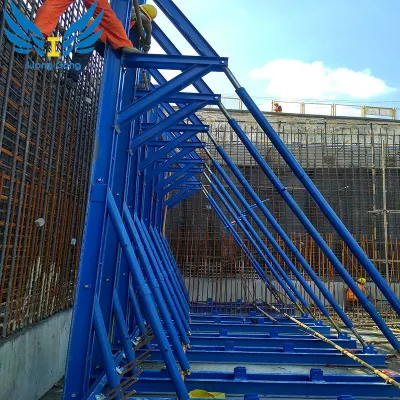

2.Structure diagram of diagonal-brace-type
Compared with the composite type, the diagonal-brace-type single-sided bracket has the advantages of simple structure, convenient disassembly and assembly, convenient storage and transportation.
Introduction to single-sided bracket

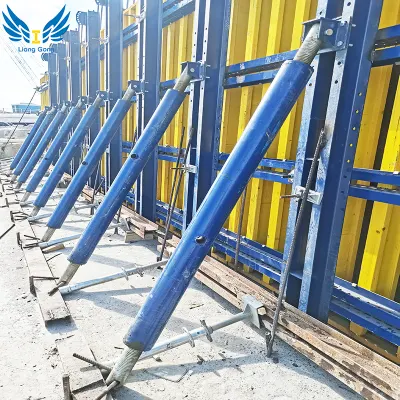

Anchor system
Anchor system is the main load bearing system of the single-sided bracket and consists of following five parts.
Technical Specification
Due to the area limitation of construction sites and the development of slope protection technology, the application of single-sided bracket for basement walls is becoming more and more common. As the lateral pressure of concrete cannot be controlled without wall-through tie rods, it has caused too much inconvenience to formwork operation. Many engineering projects have adopted a variety of methods, but formwork deformation or breaking occurs now and then. The single-sided bracket manufactured by our company is specially designed to serve the need on site, and it solves the problem of formwork reinforcement. The design of the single-sided formwork is reasonable, and it has the advantages of convenient construction, simple operation, fast speed, reasonable load bearing and labor saving, etc. Maximum cast height at one time is 7.5m , and it includes such important parts as single-sided bracket, formwork and anchor system.
Two types of single-side bracket
1.Structure diagram of truss type
Composite-type single-sided bracket is to be formed by standard frame and heighten frames as per project need for different heights, being up to 7.5m in one time casting.
2.Structure diagram of diagonal-brace-type
Compared with the composite type, the diagonal-brace-type single-sided bracket has the advantages of simple structure, convenient disassembly and assembly, convenient storage and transportation.
Introduction to single-sided bracket
Anchor system
Anchor system is the main load bearing system of the single-sided bracket and consists of following five parts.
Technical Specification
Standard components
Components of truss-type
Components of diagonal-brace-type
Products Show
Technical Specification
Casting height can reach to 4.5m with basic supporting bracket 4.5m
Casting height can reach to 5.5m with basic supporting bracket 5.5m
Casting height can reach to 7.5m with combination of differenc support bracketing
Permitted max concrete pressure is 50KN/m2, special calculation needs to be executed if bigger concrete pressure is required from specific project.
Working platform width is 750mm and permitted live load is 1.5KN/m2.
Casting height can reach to 4.5m with basic supporting bracket 4.5m
Casting height can reach to 5.5m with basic supporting bracket 5.5m
Casting height can reach to 7.5m with combination of differenc support bracketing
Permitted max concrete pressure is 50KN/m2, special calculation needs to be executed if bigger concrete pressure is required from specific project.
Working platform width is 750mm and permitted live load is 1.5KN/m2.
Packing&Delivery
Packing:
1. Generally, the total net weight of loaded container is 22 tons to 25tons, which need be confirmed before loading.
2. Different packages are used for different products:
---Bundles:Timber beam, steel props, tie rod, etc.
---Pallet:Small parts will be put in bags and then on pallets.
---Wooden cases:It is available on customer's request.
---Bulk:Some irregular goods will be loaded in bulk in container.
Delivery:
1.Production: For full container, normally we need 20-30 days after receive customer's down payment.
2.Transportation: It depends on the destination charge port.
3.Negotiation is needed for special requirements.
Our Service
1.Consulting,Design,and Quotation
Offer you a general idea of formwork & scaffold among LiangGong various systems, to fit your project demand.
Design and Customized forming & shoring proposal according to your structural drawing by Auto-CAD.
2.Manufacture and Quality Inspection
Large-scale production workshop and First-class production line, as well as a professional quality inspection team, which will provide you with high quality standard products.
Test report will be available according to different norms from different regions in order to offer no worries to clients or meet destination authority requirements.
3.Packing and Shipment
From fabrication to loading, use standard export packages to get to your site quickly.
4.Remote or On-site instruction
If you have any questions, we can provide remote or on-site guidance. Our aim is to make customers feel at ease and satisfied throughout the process.
Our Company
Lianggong Formwork Co., Ltd. is one of the leading formwork and scaffolding companies headquartered in Nanjing City, China, with its factories located in Jianhu Economic Development Zone of Yancheng City, Jiangsu Province. As a well-established company in construction formwork field, Lianggong has been devoted itself and specialized in formwork and scaffolding research, development, manufacturing, and labor service.
During the years of hardworking since 2010 by the whole company staff, Lianggong has successfully delivered and served a large number of projects at home and abroad, such as bridges, tunnels, power stations, and industrial & civil constructions. Major products of Lianggong include H20 timber beam, wall and column formwork, single-sided bracket, crane-lifted climbing formwork, hydraulic auto-climbing system, protection screen and unloading platform, shaft beam, table formwork, ring-lock scaffolding and stair tower, cantilever forming traveller and hydraulic tunnel lining trolley, etc.
Utilizing its strong technical background and abundant engineering experience, and always bearing in mind to keep its cost-effectiveness and efficiency for clients, Lianggong will continue to be your best partner in any project from the very start and achieve higher and further goals together.
Customer Photos
FAQ
Q1:Are you trading company or manufacturer?
A:We are factory.
Q2:What do you do?
A:We design and manufacture formwork and scaffolding products used for pouring concrete structure in the field of housing,multi-story structure, high rise buildings, towers, sports stadiums, bridges, hydropower stations, industrial structures etc.
Q3:What can you do for us?
A:We offer our suggestions, drawings of formwork layout, and quotations to the owners, design institutes, or contractors of the construction projects.
B:We sell our products to the contractors, building companies, material supplier or trading companies.
C:We support our worldwide peer companies with our outstanding formwork or scaffolding products.
D:We provide remote or on-site instruction to the builders.
Q4:Do you provide samples? is it free or extra?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5:What do you need in order to make a brief design and quotation when we have a construction project to be built?
A:Structural drawing and section drawing.
Q6:How long does it take to make a brief design and quotation after we offer the structural drawing?
A:In general, it takes 5~7 days based on specific requirements of construction project.
Q7:How long dose it take to manufacture the products after the signing of contract?
A:In general, it takes 30~60 days based on the type and quantity of products to be produced.
Q8:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
