Basic Info.
Model NO.
HGL-100A 4P
Number of Poles
Three Pole
Grounding
Single Ground
Series
Three
Run
Plug-In
Switching Mode
Single Throw-in
Structure of Operating
Manual
Certification
ISO, RoHS, CE, ISO9001, ISO9002
Brand
Meanray/OEM
Product Name
Manual Changeover Switch
Rated Volatage
up to 1000V DC
Rated Current
From 63A to 630A
Movable Contact Knife Material
Red Copper
Insulating Plate Material
Rubber Sheet
Screw
Hot DIP Galvanizing
Hand Shank
Isolator Material
Function
Isolated Power Supply
Mounted Type
DIN Rail or Panel Mounting
Poles
3p, 4p
Trademark
Meanray/OEM
Origin
Zhejiang, China
HS Code
8536500000
Production Capacity
100000pieces/Month
Product Description

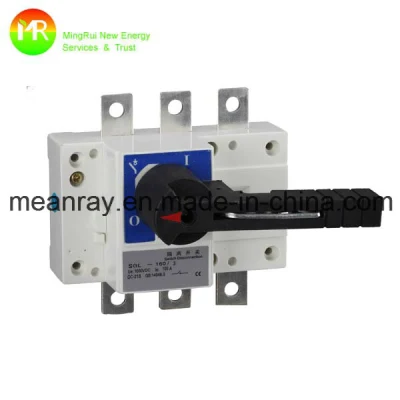

Manual Changeover Switch Rotary Switch
Manual Changeover Switch Rotary Switch Characteristics:
1.The elastic-accumulating accelerating mechanism for instant release the rapid making and breaking(13.8m/s). Having no relat on ship with the speed of the operating handle, and increase greatly the capacity of extinguish electric etc.
2. The sheu made of unsaturated polyester resin reinforced by glass fiber possesses excellent performance of flame resistant,dielectric performance,safe operation,resist carbonic performance and resist impact performace
3. Parallel double gap contact possesses self cleaning functions
4. All the contact material are copper alloy plated with silver, and possess two operation contact surfaces
5. Large clearance of insulation
6. Be on "0", the products can lock the handle with three locks at the same time and thus can avoid error operation.
Manual Changeover Switch Rotary Switch Application:
HGL Series load isolation switch mainly suitable for AC 50HZ rated voltage to 660V. DC rated volated up to 1000V, rated current up to 3150A. The switch is used in the infrequent making and breaking circuit.
Manual Changeover Switch Rotary Switch Specification:
Manual Changeover Switch Rotary Switch Components:
Manual Changeover Switch Rotary Switch Workshop:
Manual Changeover Switch Rotary Switch Shipping:
