Product Description
GENERAL

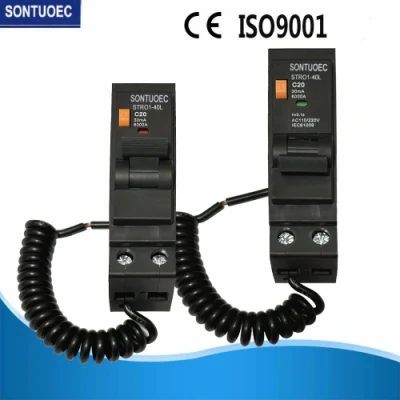

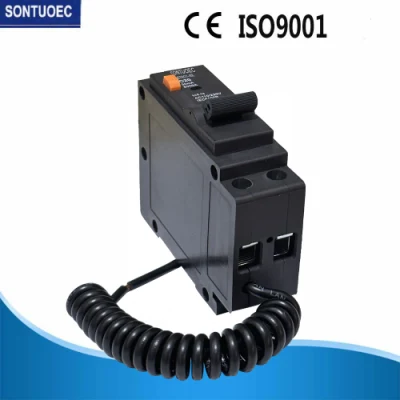

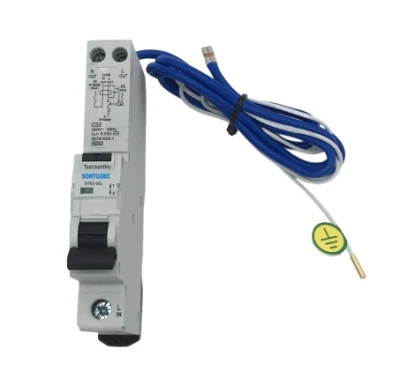

Plug In Type 1P+N 18mm width 6KA (10KA) Single Phase RCBO Circuit Breaker Electrical type over current and leakage current protection Construction and Feature:
- Provides protection against earth fault / leakage current , short-circuit and overload .
- HIgh short-circuit capacity
- Provides complementary protection against direct contact by human body.
- Effectively protects electric equipment against insulating failure .
- Contact position indication
- Provides protection against over-voltage
- Provides comprehensive protection to household and commercial distribution sysyems.
Normal working & installment conditions:
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.
Technical data:
| Standard | IEC61009 |
| Breaking Capacity | 6KA ; 10KA |
| Number of poles | 1P+N(1 module) |
| Rated currents | 6,10,16, 20, 25, 32, 40A |
| Rated voltage | 110/220VAC |
| Rated Tripping Current | 10mA,30mA, 100mA,300mA |
| Residual current off time | ≤0.1s |
| Characteristic | B ,C |
| Electrical endurance | 10000 |
| Mechanical endurance | 20000 |
| Ambient temperature | -25ºC~+45ºC Max. 95%humdity |
| Connection terminal | Fexibe conductor 16mm² |
| Rigid conductor 25mm² | |
| Type of terminal | Plug-in type |
| Width | 18mm /module |
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.
WENZHOU SANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing Circuit Breaker,AC CONTACTOR, Thermal Relay and Magnetic Starter, Distribution Box, Voltage Regulator,Solid State Relay.... and is located in Liushi.Wenzhou.China
