Basic Info.
Product Description
PRODUCT PARAMETER

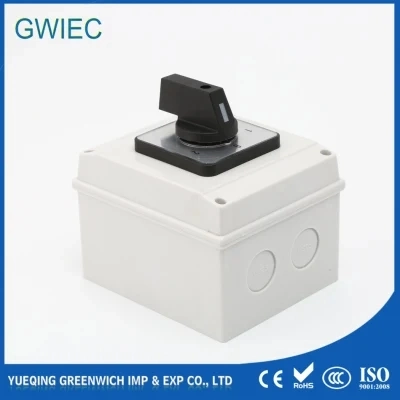

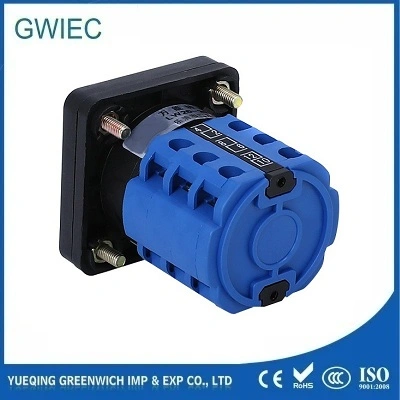

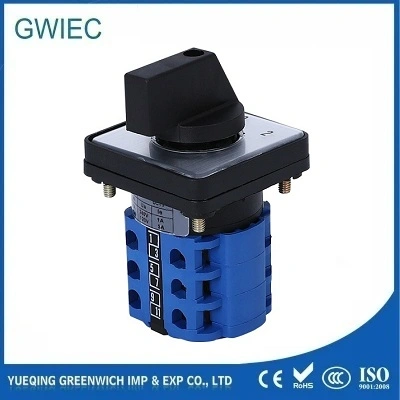

Product Brand: | GWIEC | Product Name: | Rotary switch |
Product Type: | LW26-20 (20A) GS | Rated frequency (fr): | 50 Hz-60Hz |
Standards: | IEC60947 | Insulated Voltage Ui: | 690V |

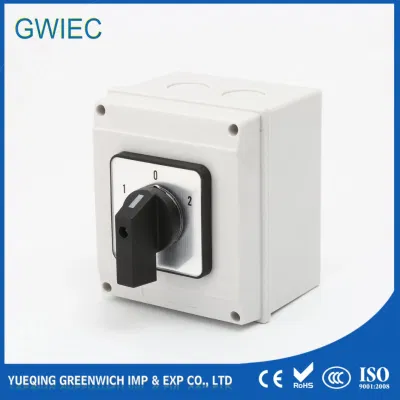

Panel knob position: | 1-0-2 | Number of Pole: | 2P |
Rotary Switch Application:
- The LW26 sereies rotary switch mainly applies to 440V and below AC 50Hz or 240V and below DC circuits
- For breaking and closing,changeover of circuits under unfrequenly manual operation
- And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and changeover switch of machinery and welding machine
- The series comply with the GB14048.3,GB14048.5 and IEC60947-3,IEC60947-5-1
Among which, the LXW26-10, LXW26-16, LXW26-20 and LXW26-25 enjoy the finger-proof terminals, which offered an extra advantage.
1) Position style; 2) Auto-return style; 3) Position & Auto-rerurn style.
Model | LW26-20 | LW26-25 | LW26-32 | |||||||
Rated insulation voltage Ui | 690V | 690V | 690V | |||||||
Rated thermal current Ith | 20A | 25A | 32A | |||||||
Rated working voltage Ue(V) | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | |
Rated working | AC-21A | - | 20 | 20 | - | 25 | 25 | - | 32 | 32 |
AC-23A | 15 | 15 | 22 | 22 | 30 | 30 | ||||
AC-2 | 15 | 15 | 22 | 22 | 30 | 30 | ||||
AC-3 | 11 | 11 | 15 | 15 | 22 | 22 | ||||
AC-4 | 3.5 | 3.5 | 6.5 | 6.5 | 11 | 11 | ||||
AC-15 | 5 | 4 | 8 | 5 | 14 | 6 | ||||
DC-13 | 5 | 1 | - | 9 | 1.5 | - | 25 | 11 | - | |
Power P (KW) | AC-23A | - | 3.7/2.5 | 7.5/3.7 | - | 5.5/3 | 11/5.5 | - | 7.5/4 | 15/10 |
AC-2 | 4 | 7.5 | 5.5 | 11 | 7.5 | 18.5 | ||||
AC-3 | 3/2.2 | 5.5/3 | 4/3 | 7.5/.7 | 5.5/4 | 11/6 | ||||
AC-4 | 0.55/0.75 | 1.5/1.5 | 1.5/1.5 | 3/2.2 | 2.7/1.5 | 5.5/2.4 | ||||
