1p+N 30mA Residual Current Device 16A 6ka Dpn

Get the ultimate protection with our 1p+N 30mA Residual Current Device 16A 6ka Dpn. As a factory, we guarantee quality and reliability. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KNBL1-32
Poles Number
1p+N
Type
Circuit Breaker
Function
RCCB
Certification
VDE, CE, CB
Frame
32A
Rated Operation Current
6;10;16;20;25;32A
Rate Limiting Short Circuit Current
6000A
Rated Residual Operating Current
0.03;0.01A
Sensibility
AC Atype
Standard
IEC/En 61009.1 and GB16917.1
Transport Package
Carton
Specification
IEC/EN61008.1 and GB 16916.1
Trademark
KORLEN
Origin
Wenzhou; Zhejiang; China
Production Capacity
500000PCS/Year

Product Description


1. Specification


Standard IEC61009-1 GB16917.1
Electrical Feature
Type (wave form of the earth leakage sensed) AC, A
Thermo-magnetic release characteristic C
Rated current In 6, 10, 16, 20, 25, 32A
Poles 1P+N
Rated voltage Ue 230/240V
Rated sensitivity IΔn 0.03, 0.01A
Rated frequency 50/60Hz
Rated residual making and breaking capacity 500A
Rated short-circuit capacity 6000A
Break time under IΔn ≤0.1s
Rated impulse withstand voltage(1.2/50) Uimp 4000V
Dielectric test voltage at ind. Freq. For 1 min 2000V
Pollution degree 1P+N
Insulation voltage Ui 500V
Mechanical Feature
Electrical life 2000
Mechanical life 2000
Protection degree IP20
Contact position indicator Yes
Ambient temperature (with daily average≤ 35º C) -5 º C...+40 º C
Storage temperature -25 º C...+70 º C
Installation
Terminal connection type Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable 16mm² 18-5AWG
Terminal size top/bottom for bus bar 16mm² 18-5AWG
Tightening torque 2 N*m 18In-Ibs
Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
Connection From top

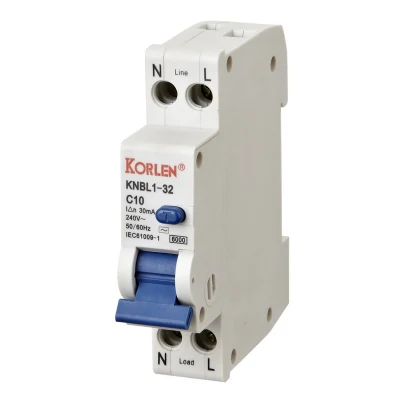

1p+N 30mA Residual Current Device 16A 6ka Dpn

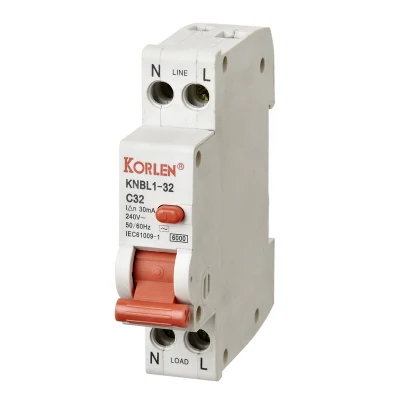

1p+N 30mA Residual Current Device 16A 6ka Dpn
1p+N 30mA Residual Current Device 16A 6ka Dpn
Shipping:
1. Normally by SEA From NINGBO/SHANGHAI TO .Worldwide..
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2. L/C also acceptable

Warranty:
1. We provide 2years warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Company Introduction

1p+N 30mA Residual Current Device 16A 6ka Dpn

Wenzhou Korlen Electric Appliances Co., Ltd, It is a joint venture. My company is a manufacturer including design, development, produce and sale, professional producing MCB, MCCB, RCCB and AC contactor etc. Product enterprises. The company owns import and export power of self-run, expanding Europe and America, Middle East, Southeast Asia etc. Market, set a good Public praise.

The company have more than 1500 workers, including senior engineer among them, engineer at inside of more than 100 technician. And then set up to cover area more than 50 acres, construct area is more than 38000 square meters of the modern industrial zone, providing with the forerunner's standard laboratory and various examination equipments.

Under Korlen people to make great effort unremittingly, designed and developed by oneself, develop and produce the series of MCB, RCCB filled up local blank, attain inter-national advanced level, and acquire more than 20 national patents. The company acquires "30 strong eminent enterprises, top ten of export income, yueqing star class enterprise, attach importance to contract and keeps promise" title of honor for many times past years. Company still the initiative pass ISO 9001 management system verification and 14001 environments management system verification. Our product passed quality verification of domestic and international authority organization like the CB\ SEMKO\ NF\ SIRIM\ SNI\ CE \PCT\ TSE, In the meantime high breaking capacity breaker of our company in this city is the unique product which got " Yueqing famous brand product" by Yueqing people government.

Korlen Electric Appliances is willing to make friends with social public, the world outside businessman join hands together for prosperous society and development to build a brighter future.



Certificates

1p+N 30mA Residual Current Device 16A 6ka Dpn

Factory Lines

1p+N 30mA Residual Current Device 16A 6ka Dpn
1p+N 30mA Residual Current Device 16A 6ka Dpn

Exhibition

1p+N 30mA Residual Current Device 16A 6ka Dpn
1p+N 30mA Residual Current Device 16A 6ka Dpn


1p+N 30mA Residual Current Device 16A 6ka Dpn 1p+N 30mA Residual Current Device 16A 6ka Dpn
