Basic Info.
Product Description
GVDA Digital Smart Inrush Clamp Meter Multimeter 600A True RMS AC/DC Current Amp Meter Measures Current Voltage Temperature Capacitance Tester GD168B
Special Features
1) HD Colour LCD Display
2) Display: Maximum 6000 Counts display
3) Non-contact AC voltage measurement(NCV)
4) AC Inrush current measurement
5) MAX/MIN value measurement
6) Live wire detection
7) Auto power off
8) Low voltage display: low battery indication
9) Over range indication
10) DCA zero for GD166B GD168B
Technical Data
| Technical Indicator | Measuring Range |
| DC Voltage | 600mV,6V,60V,600V |
| AC Voltage | 600mV,6V,60V,600V |
| DC Current | 60A,600A |
| AC Current | 60A,600A (only GD166B GD168B) |
| Resistance | 600Ω,6KΩ,60KΩ,600KΩ,6MΩ,60MΩ |
| AC Inrush current: | 60A,600A |
| Capacitance | 6nF,60nF,600uF,6uF,60uF,600uF;6mF,60mF |
| Frequency | 100Hz,1000Hz,10KHz,100KHz,1000KHz,10MHz |
| Duty Cycle | 1%~99%±(1.0%+2) |
| Temperature | -40ºC~1000ºC±(1.0%+2)/-40ºF~1832ºF±(1.0%+2) |
| Maximum count | 6000 counts |
| VA HD display screen | √ |
| Automatic/manual range | √ |
| Continuity test (sound and light prompt) | √ |
| Diode test (buzzer prompt) | √ |
| Data-hold | √ |
| NCV non-contact voltage detection (acousto-optic prompt) | √ |
| Backlight | √ |
| Flashlight | √ |
| DCA ZERO function | √ yes (only GD166B GD168B) |
| Low voltage indication | √ |
| Automatic shut-down | √ |
| True RMS | √ |
| INRUSH function | √ |
| Maximum/MIN value measurement | √ |
| REL (relative value) measurement | √ |

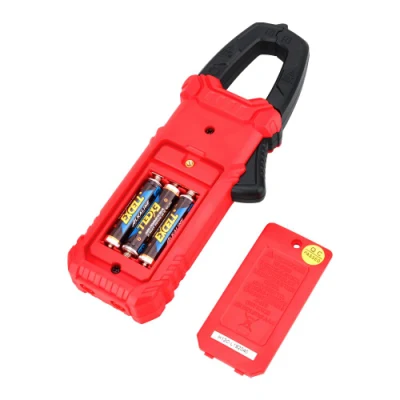

| Power supply | 3x1.5V AAA batteries(not include) |
| Product Weight | GD166A: 200g GD166B: 206g |

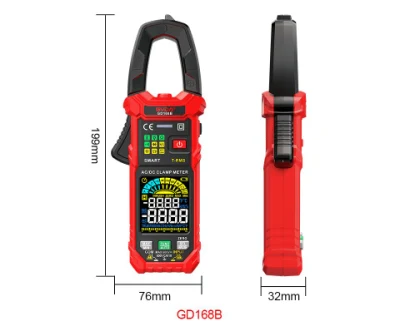

| Product Size | 199*81*32mm |
| Packing Weight | 450g |
| Package Size | 230x120x45mm |
| Safety Rating | EN61010-1 CAT III 600V |

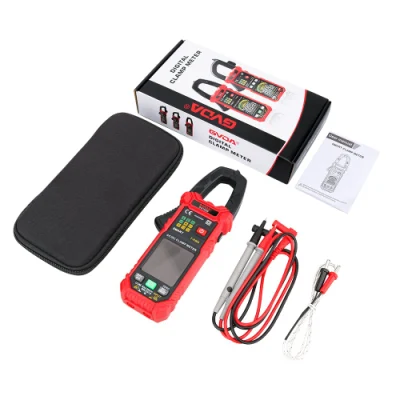

| Packing Contents | 1 x Clamp Meter(Battery Not Included) |
