Product Description

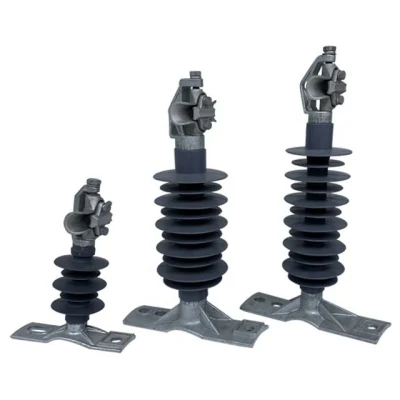

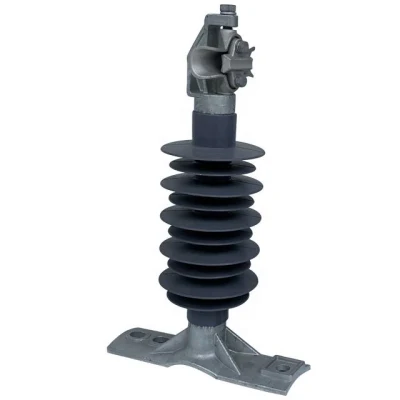

Composite Insulator
Feature
· High mechanical strength, epoxy fiber glass rod tension strength is double of normal steel, 8-10 times of porcelain materials
· High performance against pollution & flashover, the wet withstand voltage is 2-2.5 times of porcelain insulator at same creepage distance
· Good performance of hydrophobicity
· Small volume & Light weight, easy for transportation
Therefore, it is a new generation for electric power line.
Parameters
| Model | Rated Voltage (kV) | Rated Mechanical Bending Load (kN) | Structure Height (mm) | Minimum Arc Distance (mm) | Minimum Creepage Distance (mm) | Lightning Impulse Withstand Voltage, peak (kV) | P.F 1min wet withstand voltage (kV) |
| FZSW-11/10 | 11 | 10 | 405 | 165 | 430 | 95 | 45 |
| FZSW-24/10 | 24 | 10 | 450 | 320 | 700 | 125 | 65 |
| FZSW-33/10 | 33 | 10 | 570 | 320 | 1080 | 220 | 145 |
| FZSW-33/20 | 33 | 20 | 590 | 358 | 1200 | 200 | 95 |
| FZSW-66/10 | 66 | 10 | 760 | 630 | 1940 | 350 | 185 |
| FZSW-66/12.5 | 66 | 12.5 | 1050 | 790 | 2248 | 350 | 185 |
Certificate
Our product are fully comply with the standard such as IEC, BS, ANSI and other well recognized standard
and requirement.
advanced quality tests as to ensure strict quality control before delivery. We have adopted advanced date
management system to monitor and to supervise all individual process through our whole production lines
of the product with traceabledata in details and recorded at all level.
We are the manufacturer that is special in insulators, zinc oxide varistors, surge arresters, dropout fuse, air
break switch, load break switch, isolator switch, line hardwire, ABC cable accessories, meter box and so on.
We also have a professional team with 15 years of experience and also offer OEM&ODM service.
If you are interested in our products, please feel free to Contact with us, we will try our best to meet your
demand. We are seeking sole agent in all the world, we wish we can grow and develop together with you.
Our customers
Our products have being in service on electrical networks of more than more than 20 countries from 2005.
We had supplied our products and services to the below customers:
CHINESE STATE GRID,KENYA KPLC & REA,UGANDA REA & UMEME,TANZANIA TANESCO,GHANA ECG, SOUTH
AFRICA ESKOM & ARB,NIGERIAL NEPA,COTE D'IVOIRE CIENERGIES,JORDAN EDCO & NEPCO, OMAN PDO,
VIETNAM EVN,MEXICO IUSA,ECUADOR CELEC,NEPAL NEA,......….
Here, We look forward to your joining.
