Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker

Shop high quality Arc Chute for MCCB at our factory. We provide reliable arc chamber moulded case circuit breakers for all your electrical needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Product Parameters
  • Company Profile
  • Facilities
  • Laboratory
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
XM3G-3
Poles Number
3
Type
Circuit Breaker
Function
Conventional Circuit Breaker
Certification
ISO9001-2000
Transport Package
Carton
Specification
mccb parts
Trademark
intemanu
Origin
Wenzhou
HS Code
8538900000

Product Description

Detailed Photos

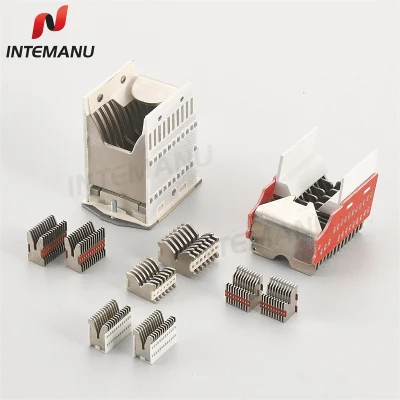

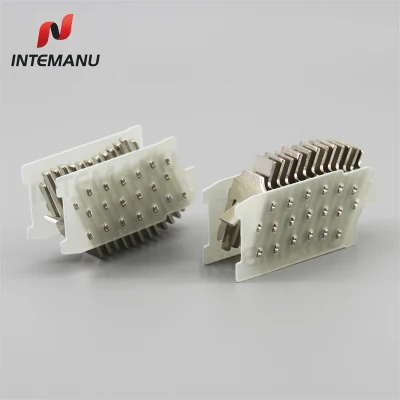

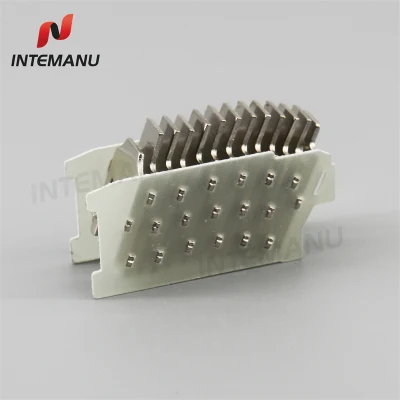

Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker


Product Parameters
MODE NO.: XM3G-3
MATERIAL: IRON Q195,MELAMINE BOARD
NUMBER OF grid PIECE(pc): 13
WEIGHT(g): 69
SIZE(mm): 64*22*38
CLADDING & THICKNESS: NICKEL
PLACE OF ORIGIN: WENZHOU, CHINA
APPLICATION: MCCB, moulded case circuit breaker
SAMPLE CHARGE: FREE, CUSTOMER NEED TO PAY FOR THE FREIGHT
OEM & ODM: AVAILABLE
PACKING: POLY BAG, CARTON, WOODEN PALLET AND SO ON
PORT: NINGBO, SHANGHAI, GUANGZHOU
MOQ: IT DEPENDS
SHIPPING: BY SEA OR AS REQUIRED
INSTALLATION: MANUAL & AUTOMATIC
PRODUCTION CAPACITY: 30,000,00 PCS PER MONTH
MOULD CUSTOMIZATION: AVAILABLE

Company Profile



Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker
Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker

Facilities

Arc Chute for MCCB Arc Chamber Moulded Case Circuit BreakerArc Chute for MCCB Arc Chamber Moulded Case Circuit BreakerArc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker

Laboratory

Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker

Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker
Arc Chute for MCCB Arc Chamber Moulded Case Circuit Breaker



Our Advantages

1. Product Customization
Custom arc chute are available upon request.
A.
How to customize the arc chute?
   Customer offers the sample or technical drawing, our engineer will make few samples for testing in 2 weeks. We will start making the mould after customer checks and confirms the sample.
B. How long we take to make a new arc chute?
We need 15 days to make sample for confirming. And making a new mould needs about 45 days.


2. Mature Technology
A. We have technicians and toolmakers who can develop and design all kinds of arc chamber according to different requirements in the shortest time. All you need to do is to offer samples, profile or drawings.
B. Most of the productions are automatic which can lower the cost.


3.Complete Range of Products
Full range of arc chambers for miniature circuit breakers, moulded case circuit breakers, earth leakage circuit breaker and air circuit breakers.

4.Quality Control
We control the quality by many inspections. Firstly we have a incoming inspection for the raw material. And then process inspection for the rivet and stamping. Finally there is final statistical audit which consisting the measurement of sizes, tensile test and coat examine.


FAQ

1.Q: Are you trading company or manufacturer ?
   A: We are manufacturer and specializing in circuit breaker accessories.


2.Q: How long is your delivery time?
   A: Normally 5-10 days if there are goods in stock. Or it will take 15-20 days. For customized    items, the delivery time depends.


3.Q: What is your terms of payment ?
   A: 30% T/T in advance ,and the balance before shipment.



4.Q : Can you make customized products or packing?
   A: Yes.We can offer customized products and packing ways can be made according to customer's requirement.


5.Q: Can you offer mould making services?
A: We have made many mould for different customers for years.

6.Q: How about the guarantee period?
A: It varies according the different kinds of product. We can negotiate it before place an order.

7.Q: What is your production capacity?
   A: We can produce 30,000,000 pcs every month.

8.Q: How about the scale of your factory?
   A: Our total area is 7200 square meter. We have 150 staffs, 20 sets of punch machines, 50 set of riveting machines, 80 sets of point welding machines and 10 sets of automation equipments.

9.Q: What tests do you have to confirm the quality of the arc chamber?
   A: We have a incoming inspection for the raw material and process inspection for the rivet and stamping. There is also final statistical audit which consisting the measurement of sizes, tensile test and coat examine.

10.Q: What is the cost for the customized mould? Will it be returned?
   A: The cost varies according to the products. And I can be returned depends on agreed terms.
