Product Description
I. Introduction:

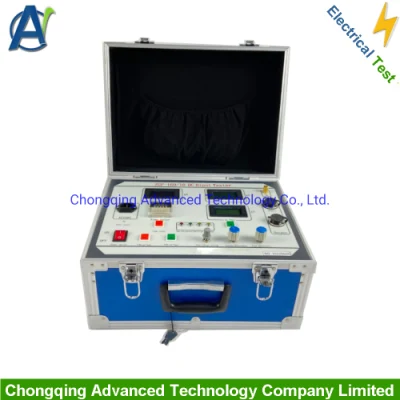

Portable DC HV generator is important test equipment for DC voltage withstand test and leakage current test of HV electrical equipments, cables, surge arresters in maintain service of electrical production, transmission and consumption departments.
The DC HV generator tester has a good performance in stability and protection of faulty specimen breakdown. The separate units of tester make the operator keep enough safe distance with high voltage circuit.
II.Main Features
1. High accuracy and reliability: high frequency voltage is boosted by multi-double rectifier. The voltage value is stable and high accuracy. The voltage booster circuit is simple which make the tester is high reliable.
2. Small size and light weight: one person can carry the largest DC HV generator (less than 200kV/2mA). That makes the application of the DC HV generator tester simple and easy.
3. Perfect seal by metal housing make the high voltage booster has strong mechanical performance and high insulation ability.
4. High voltage circuit is protected by metal shell which is connected to earth. That makes the DC HV generator tester is safety enough.
5. Protection circuit avoid the wrong operation of tester. All test should start from zero voltage. If the regulator of voltage is not at zero position the tester will be disenabled when switched on.
6. The leakage current at HV side is measured by digital micro ampere meter. The maximum error of meter can be assured is not more than 1uA.
III. Technical Specifications of DC HV Generator:
1. Power: AC220V+10%, 50Hz+1%
2. Output high voltage indicator error: <1%Readings+1D
3. Output current indicator error: <1%Readings+1D
4. Ripple contain factor of high voltage: <0.5% Readings+0.05%Full scale
5. 0.75 times output voltage indicator error: <1% Setting value, can be locked
The model of ZGF is defined as ZGF Max voltage / Max current. Such as HVG-200kv/2mA stand for the maximum voltage output is 200kv and the maximum current is 2mA.
Detail parameters for HVG series
| Model | Rated | Rated | Rated | Voltage | Weight(kg) |
ZGF-60 | 60 | 2 | 120 | 0.5 | 16 |
60 | 3 | 180 | 0.5 | ||
60 | 10 | 600 | 0.5 | ||
ZGF-120 | 120 | 2 | 240 | 0.8 | 20 |
120 | 5 | 600 | 0.8 | ||
120 | 10 | 1200 | 0.8 | ||
ZGF-200 | 200 | 2 | 400 | 1.2 | 26 |
200 | 5 | 1000 | 1.2 | ||
200 | 10 | 2000 | 1.2 | ||
ZGF-300 | 300 | 2 | 600 | 1.7 | 31 |
300 | 5 | 1500 | 1.7 | ||
300 | 10 | 3000 | 1.7 |
Above model are the common requirements. It can also be customized for different voltage and current outputs.
Factory overview
Customer Feedback
Chile
Germany
USA
Transporation
FAQ
1.What's the delivery time?About 15 working days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
