Application:

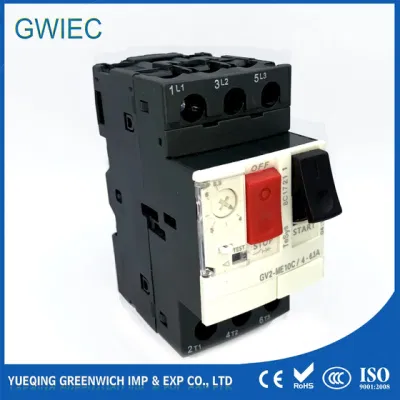

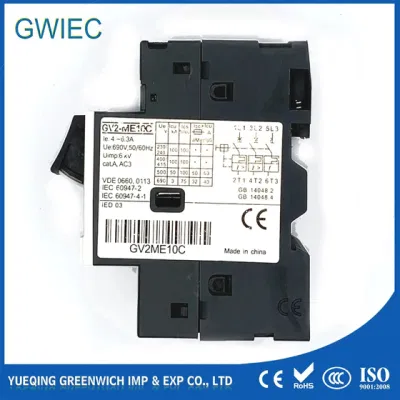

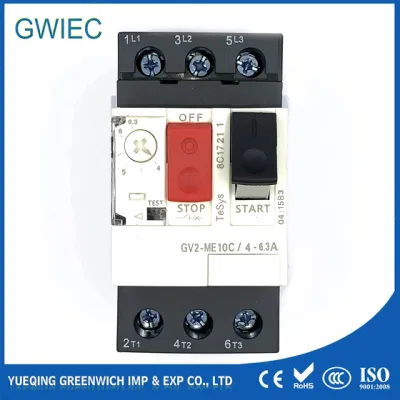

- GV2/GV3 series motor protection circuit breaker (Motor Manual Starter) are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
Specification:
Product name | HOT SALE GV2 ME GV3 ME 3p 0.1A~80A Adjustable Motor Protection Switch Motor Manual Starter Circuit Breaker MPCB | ||||||
Type | Rated standard power of 3-phase motors 50/60HZ in category AC-3 | Setting range(A) | |||||
220V | 380V | 415V | 440V | 500V | 660V | ||
KW | KW | KW | KW | KW | KW | ||
GV2-M01 | -- | -- | -- | -- | -- | -- | 0.1-0.16 |
GV2-M02 | -- | -- | -- | -- | -- | -- | 0.16-0.25 |
GV2-M03 | -- | -- | -- | -- | -- | -- | 0.25-0.4 |
GV2-M04 | -- | -- | -- | -- | -- | 0.37 | 0.4-0.63 |
GV2-M05 | -- | -- | -- | 0.37 | 0.37 | 0.55 | 0.63-1.0 |
GV2-M06 | -- | 0.37 | -- | 0.55 | 0.75 | 1.1 | 1.0-1.6 |
GV2-M07 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
GV2-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4.0 |
GV2-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4-6.3 |
GV2-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6.0-10.0 |
GV2-M16 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 | 9.0-14.0 |
GV2-M20 | 4 | 7.5 | 9 | 9 | 9 | 11 | 13.0-18.0 |
GV2-M21 | 5.5 | 11 | 11 | 11 | 11 | 15 | 17.0-23.0 |
GV2-M22 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 20.0-25.0 |
GV2-M32 | 7.5 | 15 | 15 | 15 | 18.5 | 26 | 24.0-32.0 |
GV3-M06 | -- | 0.37 | -- | 0.55 | 0.75 | 1.1 | 1.0-1.6 |
GV3-M07 | 0.37 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.6-2.5 |
GV3-M08 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | 2.5-4.0 |
GV3-M10 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 | 4.0-6.0 |
GV3-M14 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 | 6.0-10.0 |
GV3-M20 | 4 | 7.5 | 7.5 | 7.5 | 10 | 11 | 10.0-16.0 |
GV3-M25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 | 16.0-25.0 |
GV3-M40 | 11 | 18.5 | 22 | 22 | 25 | 33 | 25.0-40.0 |
GV3-M63 | 15 | 30 | 33 | 33 | 40 | 55 | 40.0-63.0 |
GV3-M80 | 22 | 40 | 45 | 45 | 55 | 63 | 56.0-80.0 |
