PRODUCTS DETAILS

Basic Info.

Model NO.
S11 Series
Usage
Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics
High Frequency
Shape of Core
Ring
Brand
Leicheng
Type
Power, Electric, Distribution Transformer
Name
Oil Immersed Transformer
Phase Number
There Phase Transformer
Core Materials
Silicon Steel
Winding Material
Copper/Aluminium Winding
Vector Group
Dyn11 or Yyn0 (Customized)
Insulation Class
H-Class
Use
Power Transformer, Distribution Transformer
Insulation Material
Cast Resin
Accessories
Cooling Fans, Enclosure ,Temperature Control
Frequency
50Hz or 60Hz High Frequency Transformer
Transformer Type
Cast Resin Dry Type Rectifier Transformer
Category
Electric Power Transformer /Isolation Transformer
Types
Factory
Other Name
Voltage Transformer
Transport Package
Wooden Case Packing, Container Shipping
Specification
10kv
Trademark
LeiCheng
Origin
China
HS Code
8504210000
Production Capacity
500PCS/Month

Product Description

Product Detail

1. Product Display

S11/S13 series oil immersed distribution transformers use insulating oil as cooling and insulating medium.
The core is made of high quality cold rolled sillcon steel, the oil tank adopts corrugated oil tank without oil conservaor.
Vacuum oil injection process is adopted to effectively prevent oxygen and water from penetrating into transformer oilresulting in the decline of insulating oil performance.
It is a new generation of energy-saving and environmental protection products.
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer

S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
2. Product Drawing

S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
3. Product Specification

S11

Capacity

Rated voltage&Off-load tapping
Vector
 GroupSymbol
NO-load
loss(W)
Load loss(W) NO-load current(%) Short
circuit impedance(%)
H.V(kv)  High pressure
  Tap range(%)
L.V(kv)
30 kva 11 10.5
10 6.3
6
±5%
±2x2.5%
0.4
0.415
0.420
0.430
0.440
Dyn11
Yyn0
100 630/600 1.5 4
50 kva 130 910/870 1.3 4
60 kva 150 1090/1040 1.2 4
75 kva 180 1310/1250 1.2 4
100 kva 200 1580/1500 1.1 4
125 kva 240 1890/1800 1.1 4
150 kva 280 2310/2200 1 4
200 kva 340 2730/2600 1 4
250 kva 400 3200/3050 0.9 4
300 kva 480 3830/3650 0.9 4
400 kva 570 4520/4300 0.8 4
500 kva 680 5410/5150 0.8 4
600 kva 810 6200 0.6 4.5
750 kva 980 7500 0.6 4.5
1000 kva 1150 10300 0.6 4.5
1250 kva 1360 12000 0.5 4.5
1500 kva 1640 14500 0.5 4.5
2000 kva 1940 18300 0.4 5
2500 kva 2290 21200 0.4 5

S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer

Product Drawinj

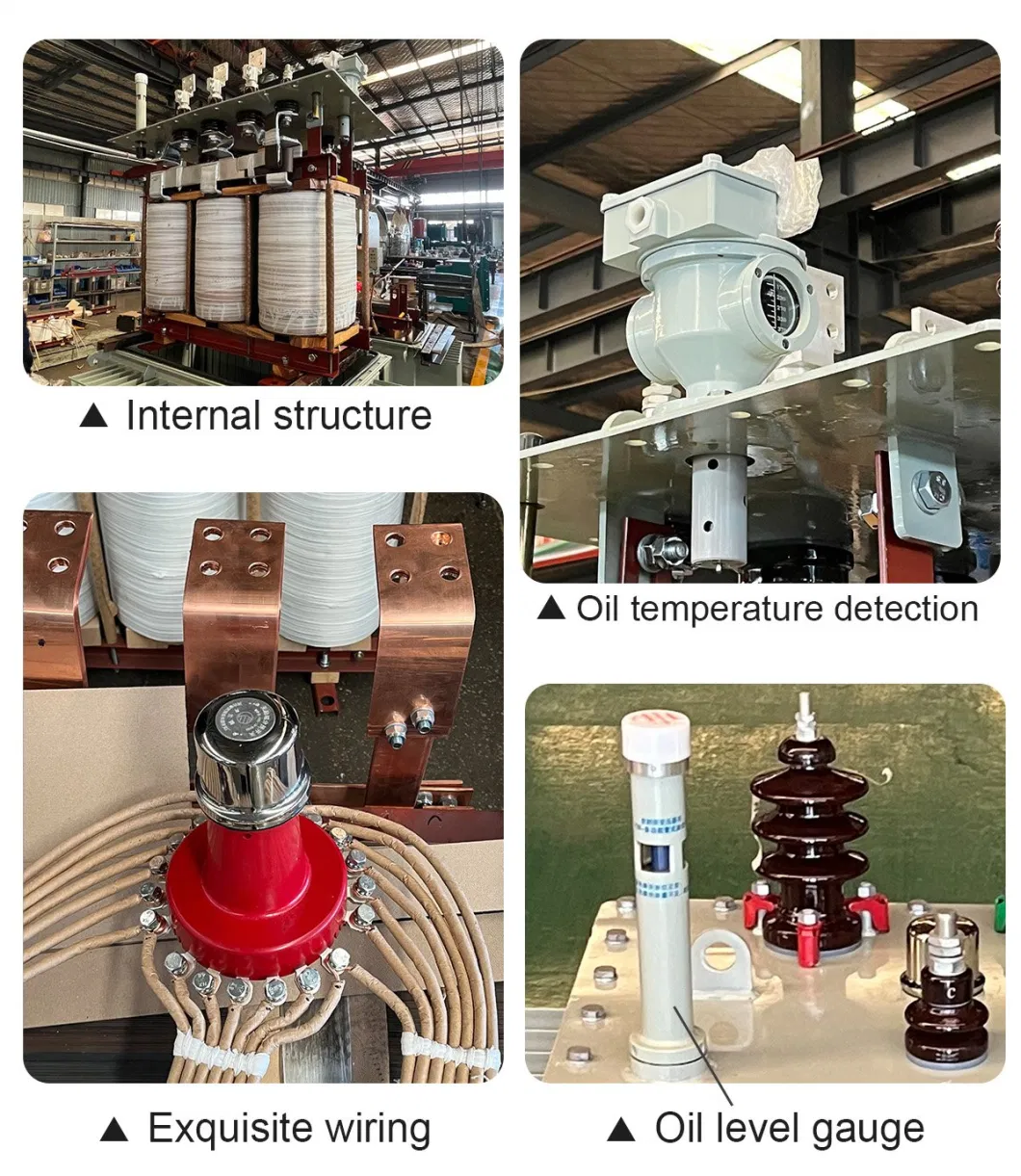

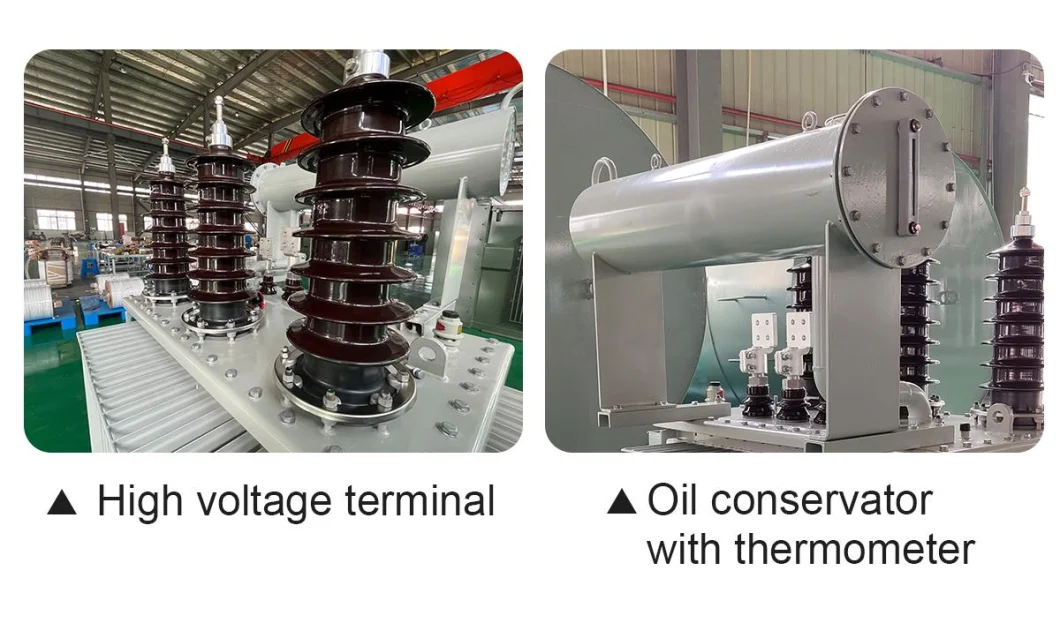

4. Product Structure
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
Product Process
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type TransformerS11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
Product Application


Mainly used in 11kV urban distribution network, power supply and distribution system of industrial and mining enterprises and civil buildings

S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
Company Profile

HeBei LeiCheng Since its inception, always adhere to the "quality first, credit first" business purpose, constantly develop innovative products, expand the market, and with many scientific research units, colleges and universities work closely and hired professional and technical personnel as guideline, USES the domestic and foreign advanced technology, experienced several years of hard struggle, finally achieved gratifying results, specifically Industry production of single-phase three-phase conversion power supply, control transformer, three coherent transformer, CNC machine tool control transformer, main transformers, power transformers, power transformers, special transformers, voltage regulator, voltage regulator, reactor, inverter, soft start and other CNC machine tools widely used, the company pays attention to the development of products, research and development at the same time, constantly strengthen the quality management.

Office Environment

S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer

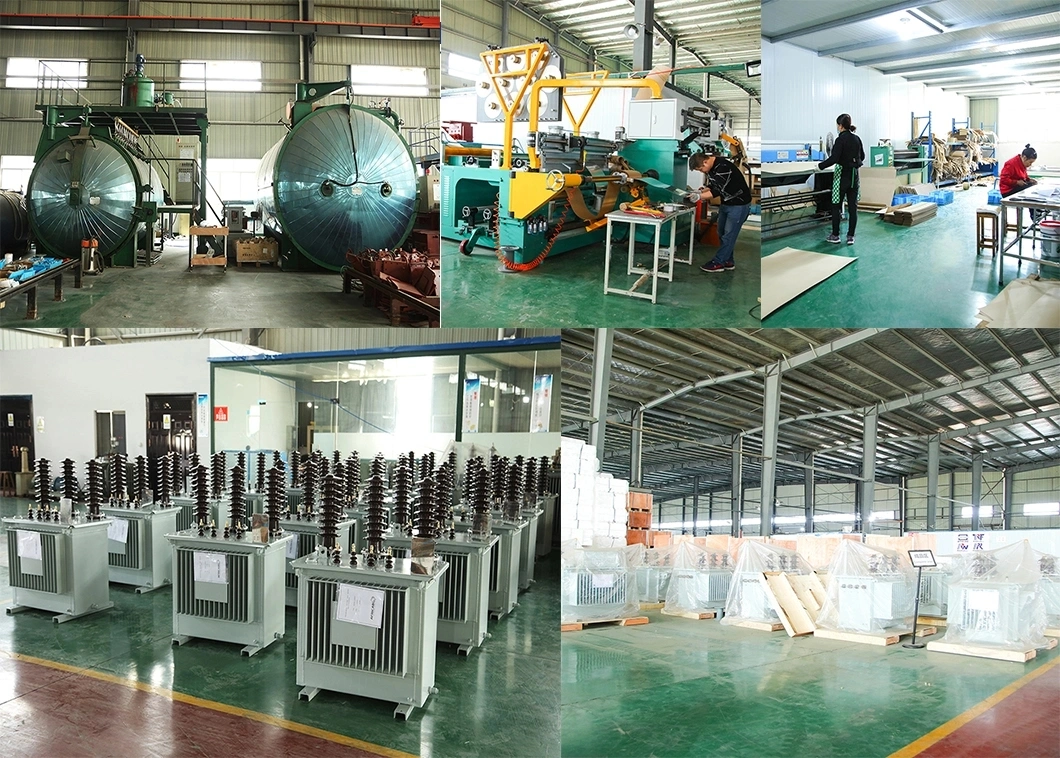

Factory
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
Certifications

S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer


S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type TransformerPackaging&Shipping
S11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type TransformerS11 Series 10kv Power Distribution Three-Phase Electric Transformer with Oil Immersed High Voltage Onan Rectifiers Current High Frequency Dry Type Transformer

FAQ

1. Who we are ?
We are based in HeBei, China,sell to Domestic Market(80.00%),Southeast Asia(20.00%). There are all about 1200-1500 people in our company.

2.How can we guarantee quality?
 Always make a final Inspection before shipping.


3.What can you buy from us?
110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.


4.Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L ,UL ,CE certificates and IEC, ANSI, KEMA, GOST standard.


5.What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese.
